Create Deka NFS

PreviousDeka NFSNextDetail Deka NFS

Last updated 6 months ago

To create Deka NFS, make sure you have already created a VPC with the Simple type. If you fail to create Deka NFS, ensure that the Super Admin has increased the Storage limit. Here are the steps to create Deka NFS in the Cloudeka portal service:

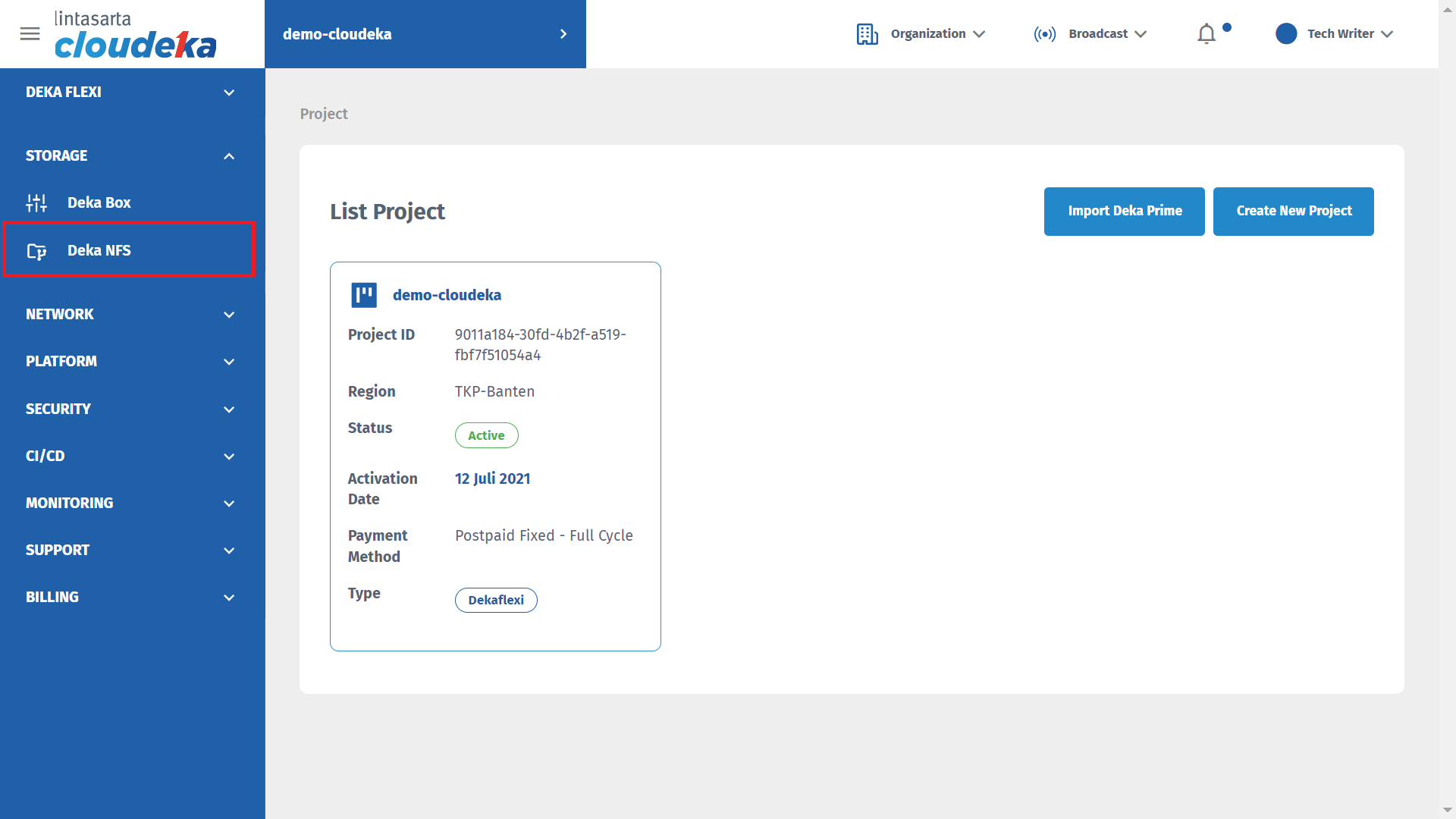

  • On the Cloudeka portal service page, select the Deka NFS menu under Storage.

Create Deka NFS (a)

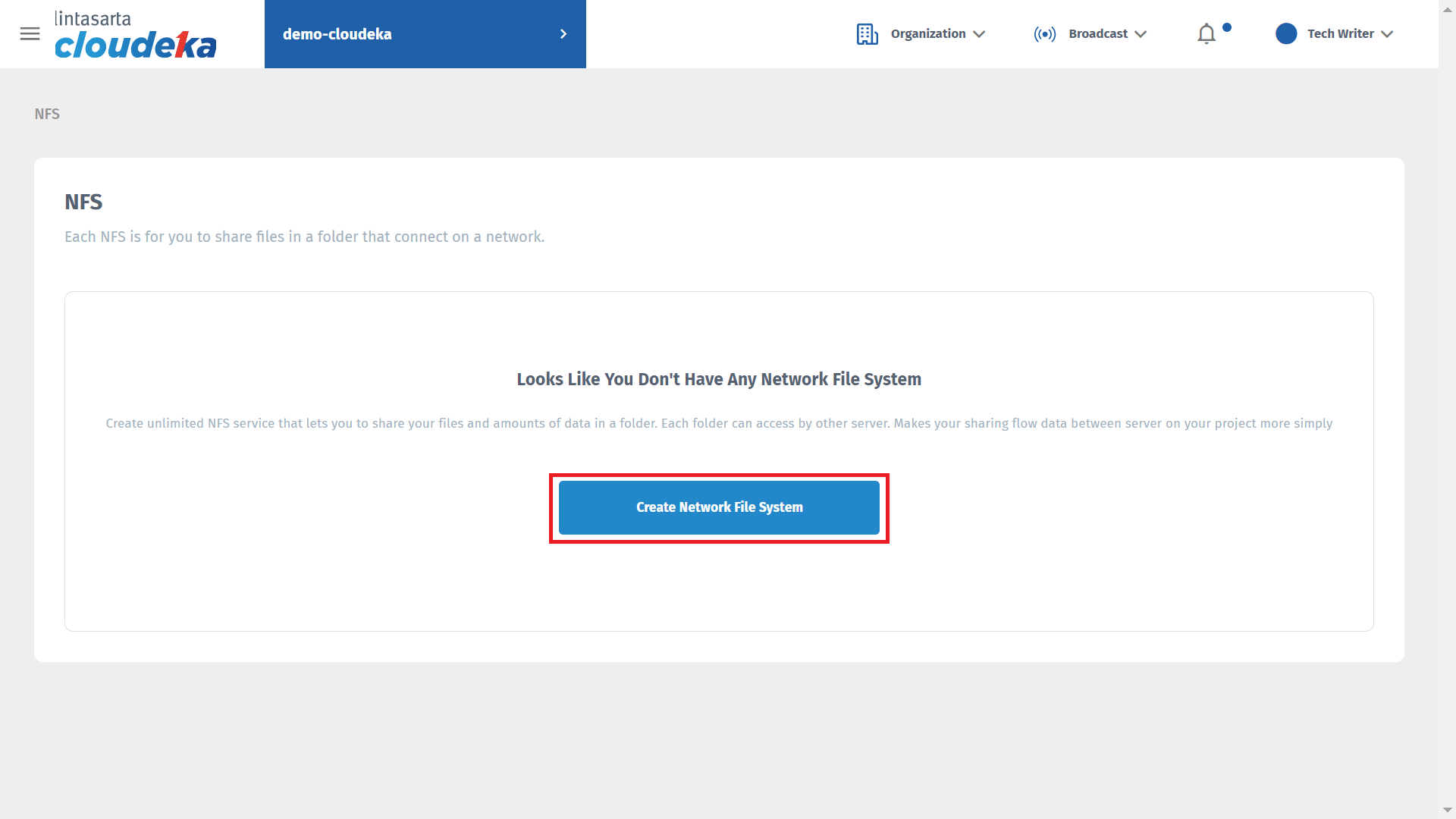

  • On the Deka NFS page, click on the Create Network File System button.

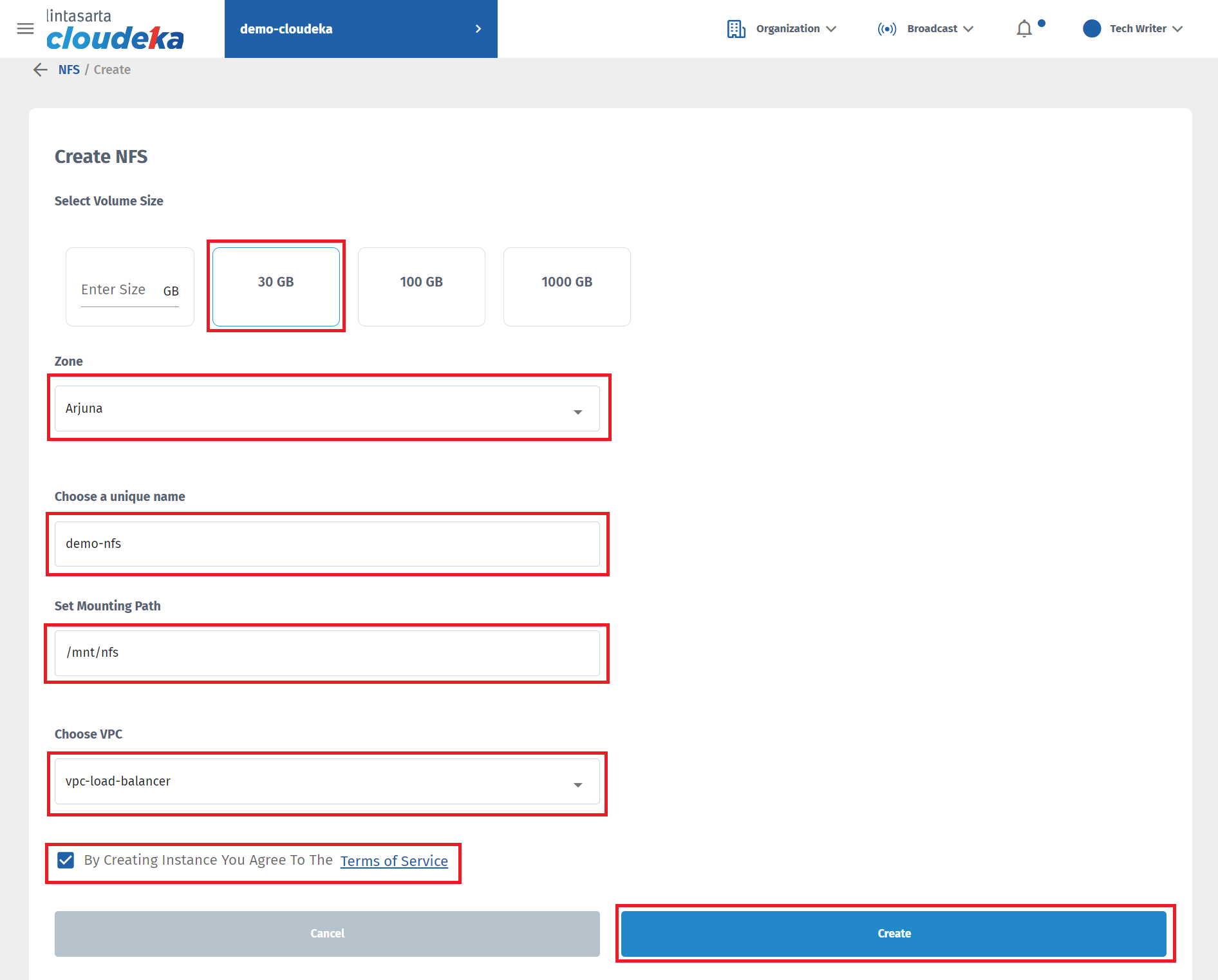

  • On the Create NFS page, there are several columns that need to be field.

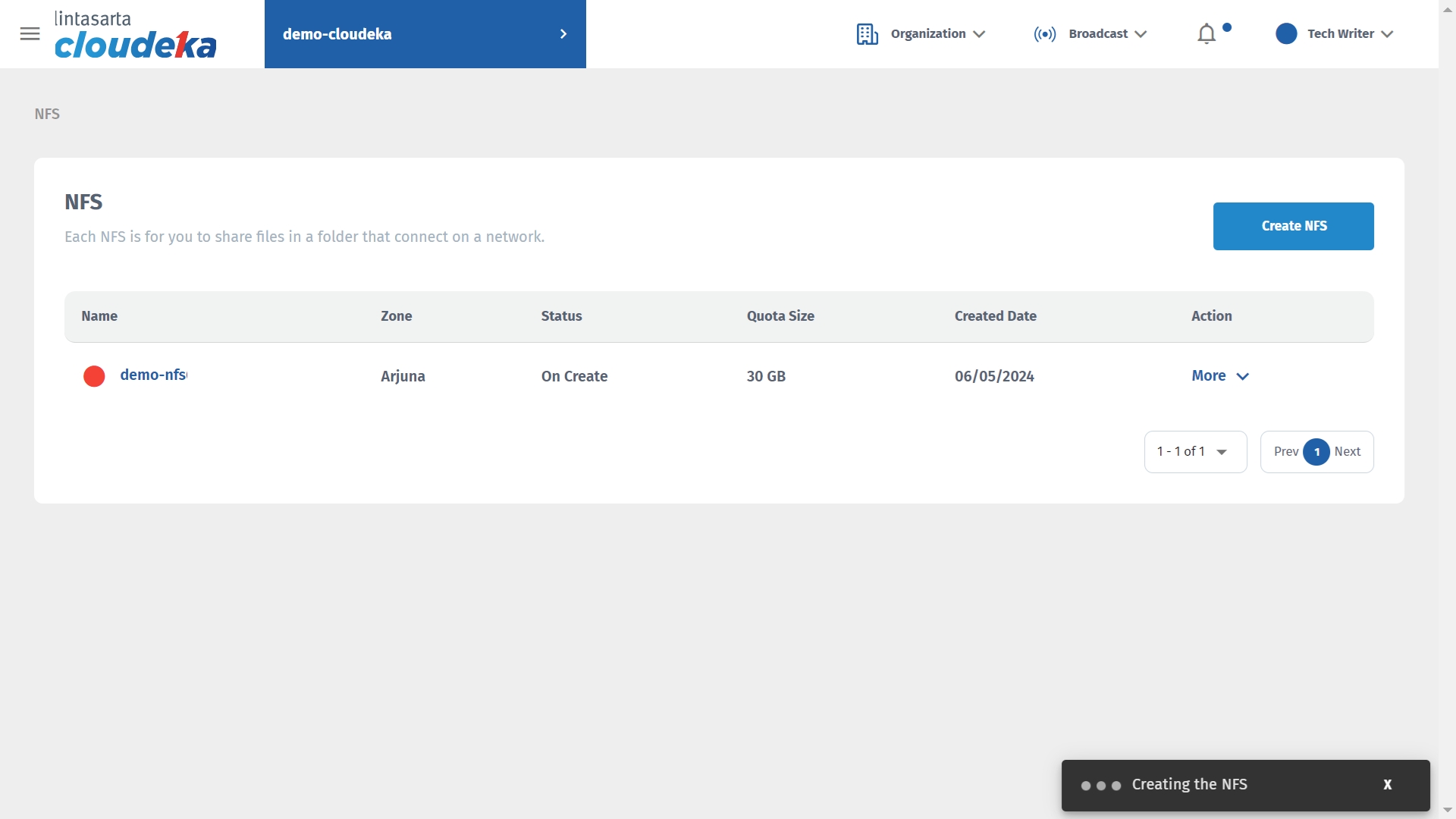

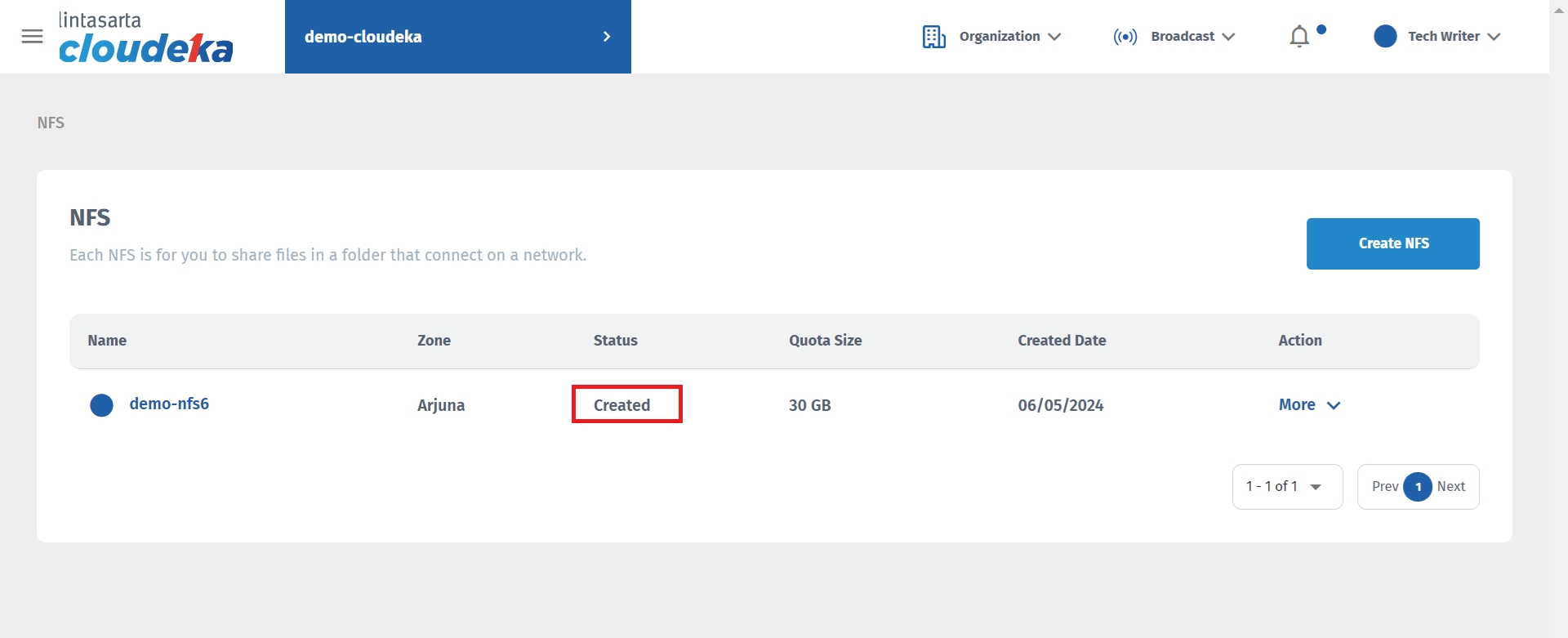

  • Wait until the process is complete, and the status changes to Created.

Create Deka NFS (b)
Create Deka NFS (c)
ColumnDescription
Create Deka NFS (d)
Create Deka NFS (e)

Select Volume Size

Volume capacity for the NFS volume to be created.

Zone

Location to be used.

Choose a unique name

Name used for labeling.

Set Mounting Path

File system location where the NFS will be mounted in the Deka NFS configuration.

Choose VPC

Configuration of the previously created VPC.
