# Setting DNS Management

* Click on **techwriter.com**

<figure><img src="https://putri.box.cloudeka.id/cloudeka-assets/static/images/10dekadns/10.4%20DNS%20management-Aktif.PNG" alt=""><figcaption><p>DNS Management Page</p></figcaption></figure>

* **DNS Management for techwriter.com** page appears.

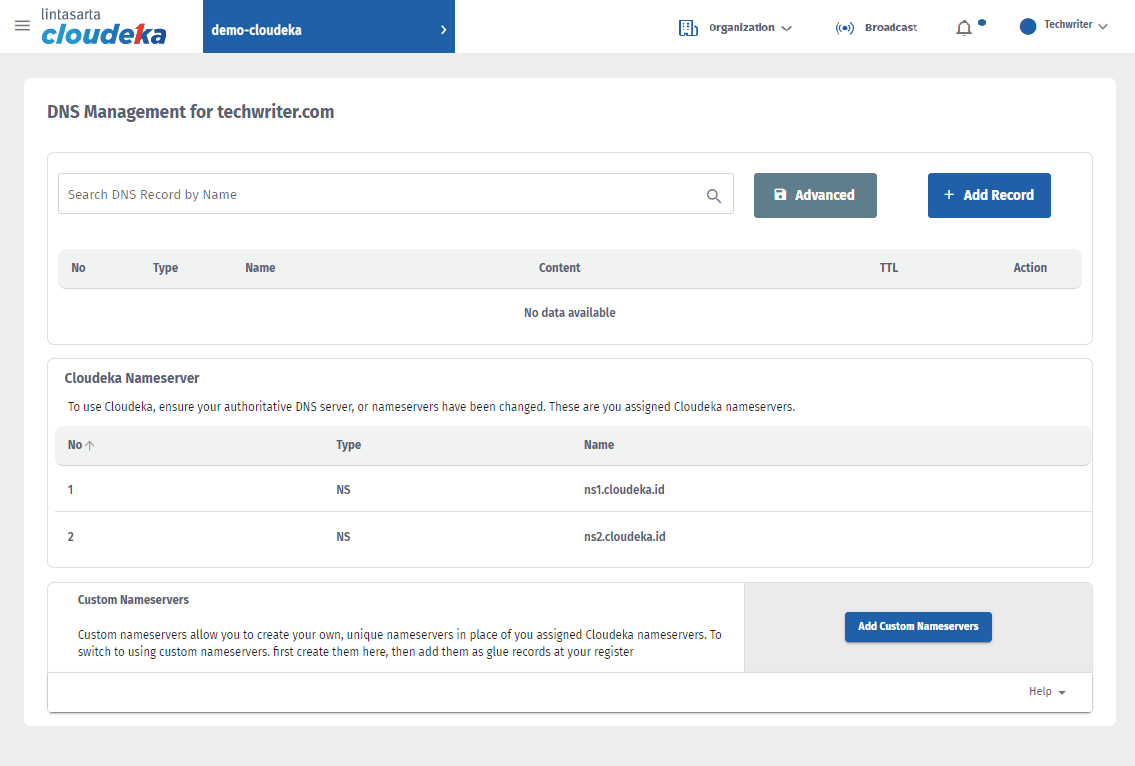

<figure><img src="https://putri.box.cloudeka.id/cloudeka-assets/static/images/10dekadns/10.4.%20a%20DNS%20Management%20.PNG" alt=""><figcaption><p>DNS Management Page- techwriter.com</p></figcaption></figure>

## Add Record

* Click **Add Record.**

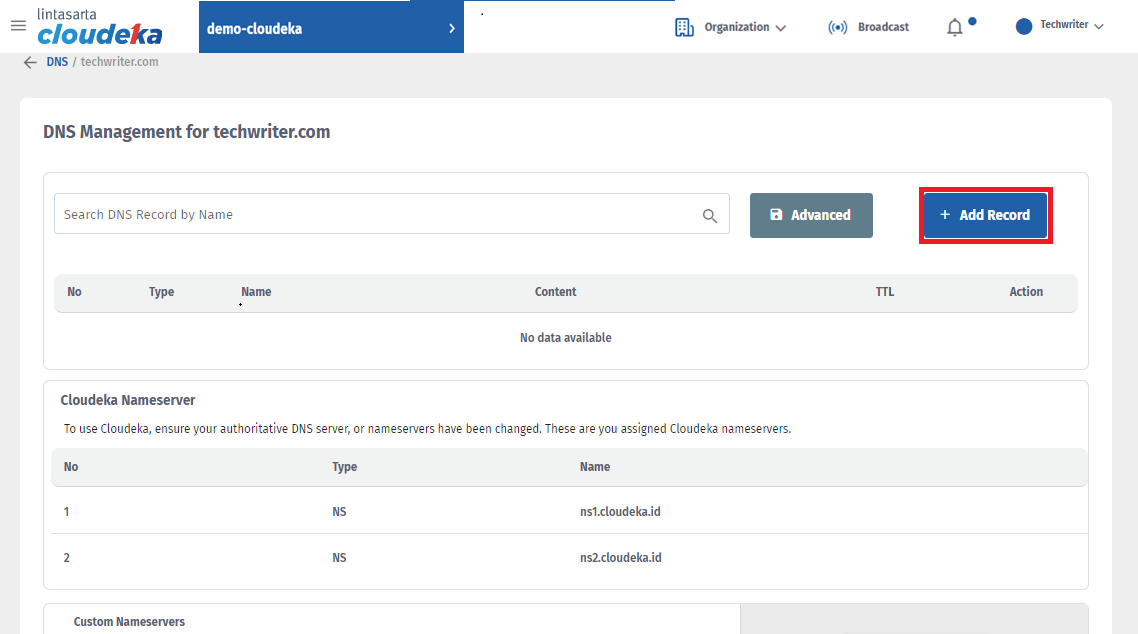

<figure><img src="https://putri.box.cloudeka.id/cloudeka-assets/static/images/10dekadns/10.5%20DNS%20management-techwriter.com.PNG" alt=""><figcaption><p>Add Record</p></figcaption></figure>

* Fill in the **record** then click **Save** button

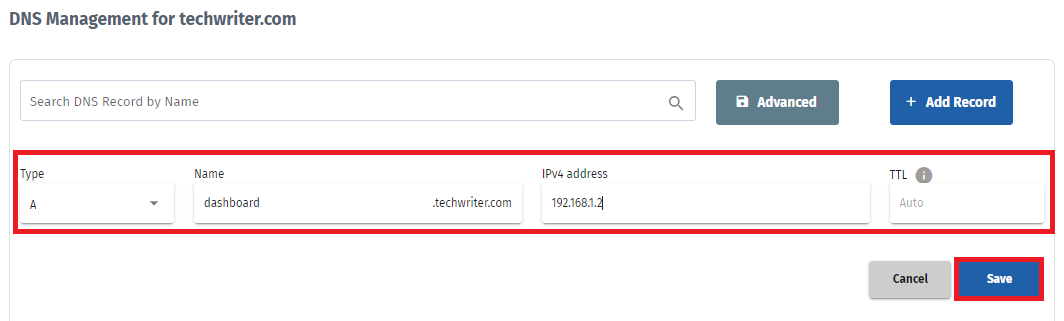

<figure><img src="https://putri.box.cloudeka.id/cloudeka-assets/static/images/10dekadns/10.6.a%20Input%20Nameservers.PNG" alt=""><figcaption><p>Input Record</p></figcaption></figure>

<table><thead><tr><th width="178">Column</th><th>Description</th></tr></thead><tbody><tr><td><strong>Type</strong></td><td>Users can choose data type for explanations can be seen in <strong>Table 10.2 List of Data Type and Type</strong></td></tr><tr><td><strong>Name</strong></td><td>Fill domain name because this field <strong>must be filled in</strong></td></tr><tr><td><strong>Content</strong></td><td>Adjusting to <strong>Type</strong> selected for this field <strong>must be filled in</strong></td></tr><tr><td><strong>TTL</strong></td><td>If the TTL is emptied the default calue stores is 86400 (24 Hours)</td></tr></tbody></table>

\
The following is an explanation of the types of data used:

<table><thead><tr><th width="118">Type</th><th width="117">Data Type</th><th>Description</th><th>Example</th></tr></thead><tbody><tr><td><strong>A</strong></td><td>IPv4</td><td>For IP address version 4, use 32 bits</td><td>192.168.1.4</td></tr><tr><td><strong>AAAA</strong></td><td>IPV6</td><td>For IP address version 6, use 128 bits</td><td>2001:0000:3238:DFE1:0063:0000:0000:FEFB</td></tr><tr><td><strong>MX</strong></td><td>String</td><td>Used for email server identification</td><td>- mx.domain.com<br>- ‘mx.domain.com’<br>- “mx.domain.com”</td></tr><tr><td><strong>TXT</strong></td><td>String</td><td>Used for SSL verification.</td><td>- txt.domain.com<br>- 'txt.domain.com'</td></tr><tr><td><strong>SRV</strong></td><td>String</td><td>Used to place futher related to service (IP, port, or other description)</td><td>100 43 tipesrv.format-record.com</td></tr><tr><td><strong>CNAME</strong></td><td>String</td><td>Digunakan untuk memetakan nama alias ke nama domain</td><td>- cname.domain.com<br>- 'cname.domain.com'<br>- "cname.domain.com"</td></tr><tr><td><strong>SPF</strong></td><td>String</td><td>Userd for email security</td><td>"v=spf1 include:_spf.google.com -all"</td></tr><tr><td><strong>PTR</strong></td><td>String</td><td>Used as reverse text of a record</td><td>- ptr.domain.com<br>- 'ptr.domain.com'<br>- "ptr.domain.com"</td></tr></tbody></table>

## Add Custom Nameservers

* On the **DNS Management** page
* The uses clicks the **Add Custom Nameservers** button to modify the server name

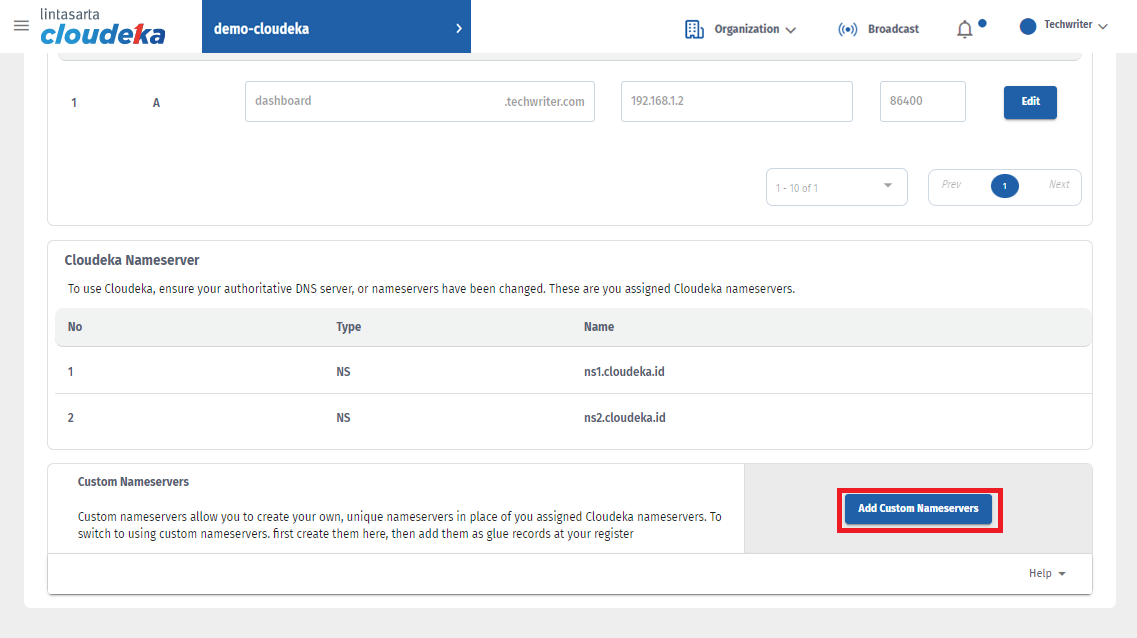

<figure><img src="https://putri.box.cloudeka.id/cloudeka-assets/static/images/10dekadns/10.6%20Add%20Custom%20Nameservers.PNG" alt=""><figcaption><p>Setting Management-Add Custom Nameservers</p></figcaption></figure>

* Fill in **Nameserver**, **ns1**, **ns2** on the **Setup Custom Nameservers** page, for the domain that has been entered will be immediately created and activated. If the name servers are currently enabled they will be replaced with new records.

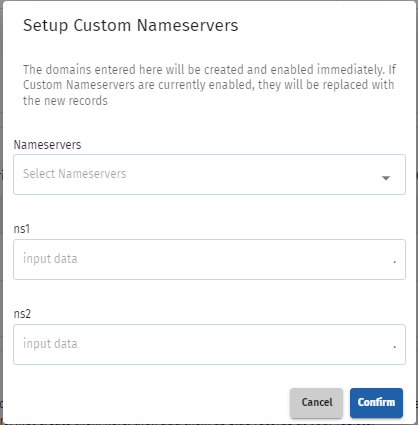

<figure><img src="https://putri.box.cloudeka.id/cloudeka-assets/static/images/10dekadns/10.7%20Setup%20Custom%20Nameservers.PNG" alt=""><figcaption><p>Setup Custom Nameservers</p></figcaption></figure>

<table><thead><tr><th width="340">Column</th><th>Decription</th></tr></thead><tbody><tr><td><strong>Nameservers</strong></td><td>Select server name</td></tr><tr><td><strong>ns1</strong></td><td>Server name 1</td></tr><tr><td><strong>ns2</strong></td><td>Server name 2</td></tr></tbody></table>
