Create VPC Network

This guide explains how to create a VPC Network. VPC Network is also the basis for creating a Virtual Machine, you must create a VPC Network before creating a Virtual Machine.

  • Go to Network page.

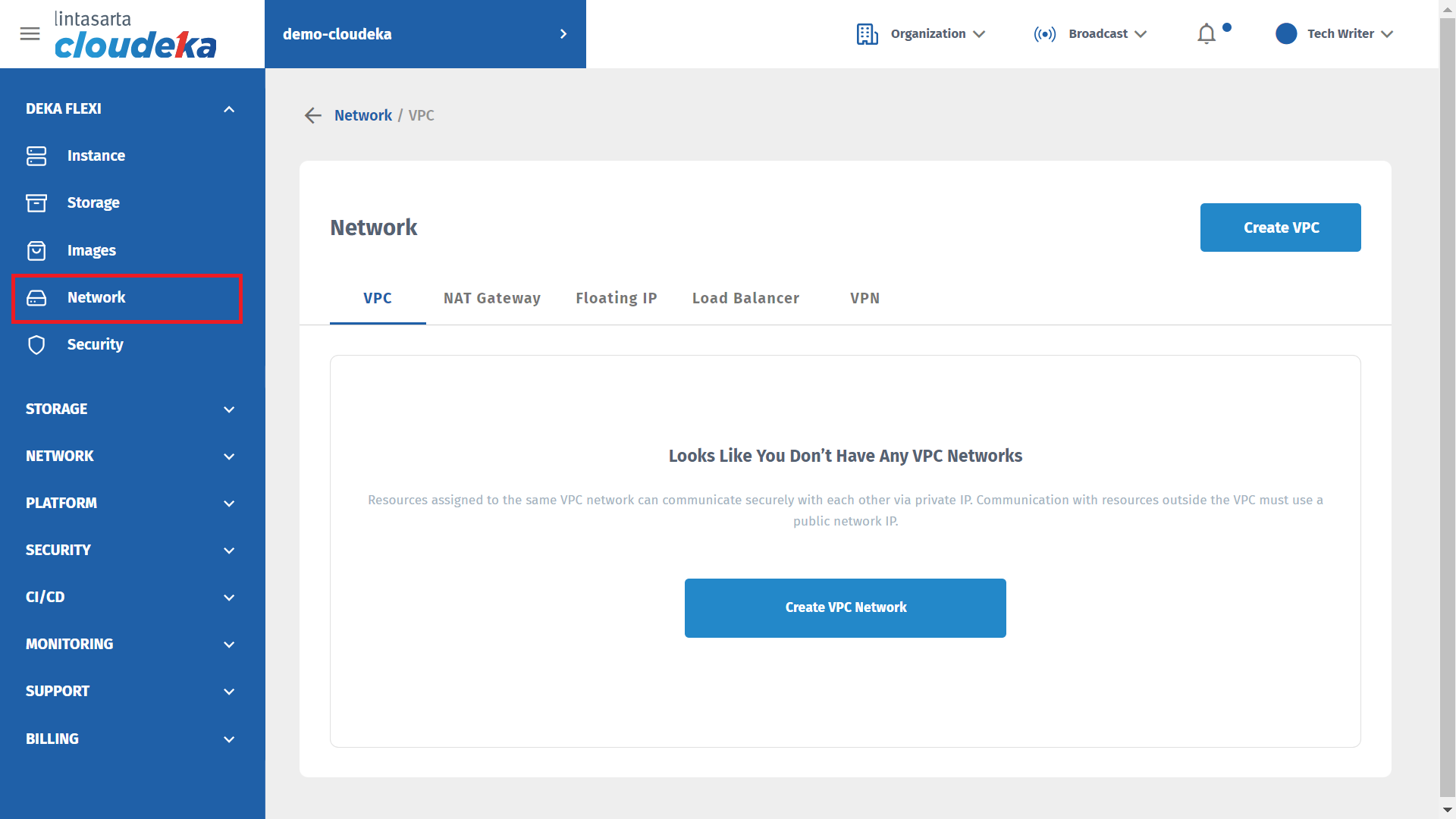

Network Page
  • Click Create VPC button.

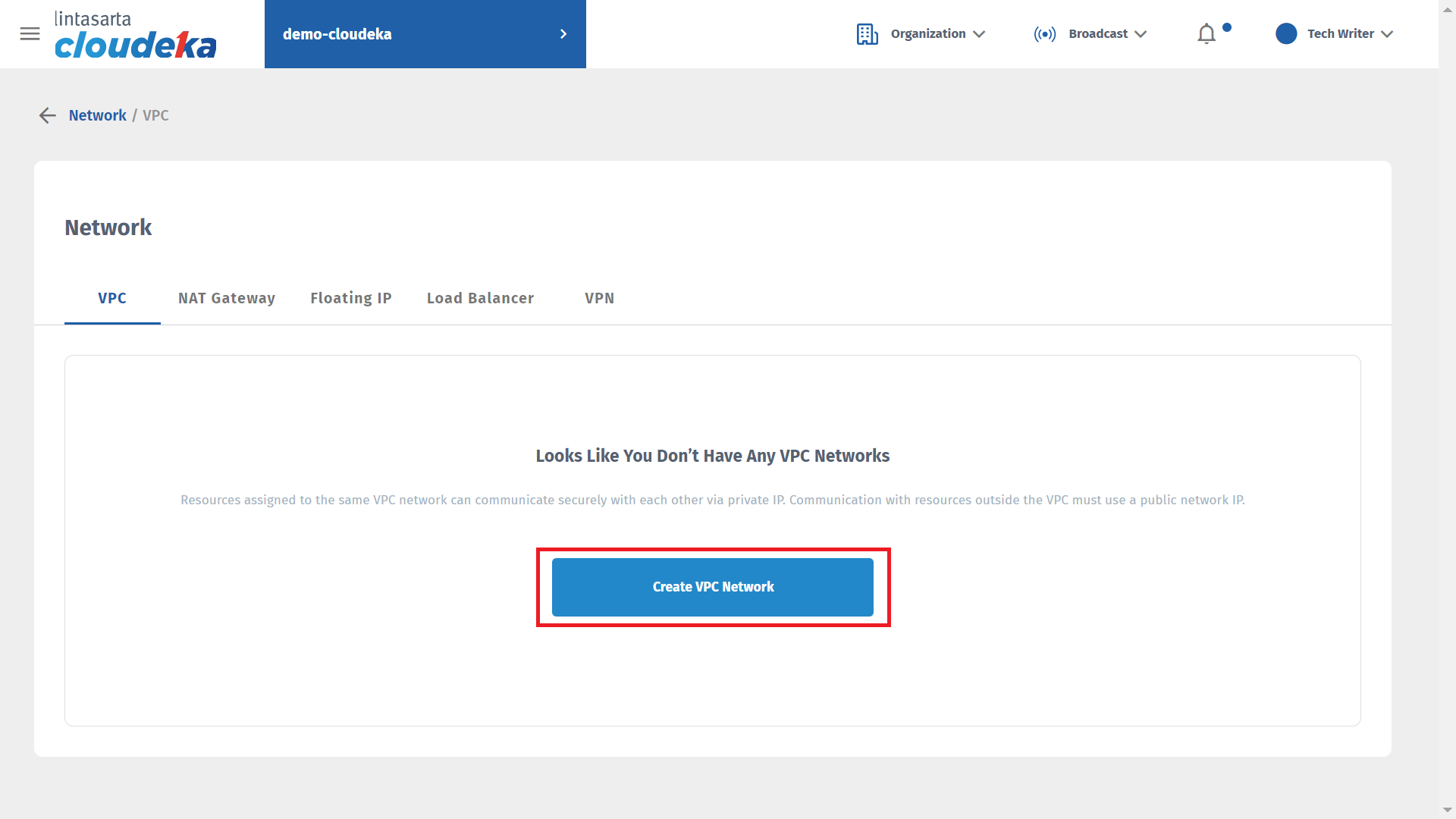

Network Page - Create VPC
  • Select the Wizard Simple tab and Fill in the Create VPC Network form.

Column
Description

Name

Name of VPC Network

Description

Description of VPC Network

Billing Type

- PPU - Fixed

IP Address

Enter Private IP Address also the subnetmask, The Internet Assigned Number Authority (IANA) has assigned several address ranges to be used by private networks. Address ranges to be use by private network are: - Class A: 10.0.0.0 to 10.255.255.255 - Class B: 172.16.0.0 to 172.31.255.255 - Class C: 192.168.0.0 to 192.168.255.255 An IP address within these ranges is therefore considered non-routable, as it is not unique. Any private network that needs to use IP addresses internally can use any address within these ranges without any coordination with IANA or an Internet registry. Addresses within this private address space are only unique within a given private network.

VPC Type

There are two types available on the VPC: a.Simple support services that need to be connected to the internet and have access to resources outside the VPC. b.Isolated is used to fully isolate resources and data from the internet or other resources outside the VPC. VPC type difference is the simple type you can add Floating IP to the network configuration.

  • After filling out all the forms in the VPC Network, click Create VPC Network.

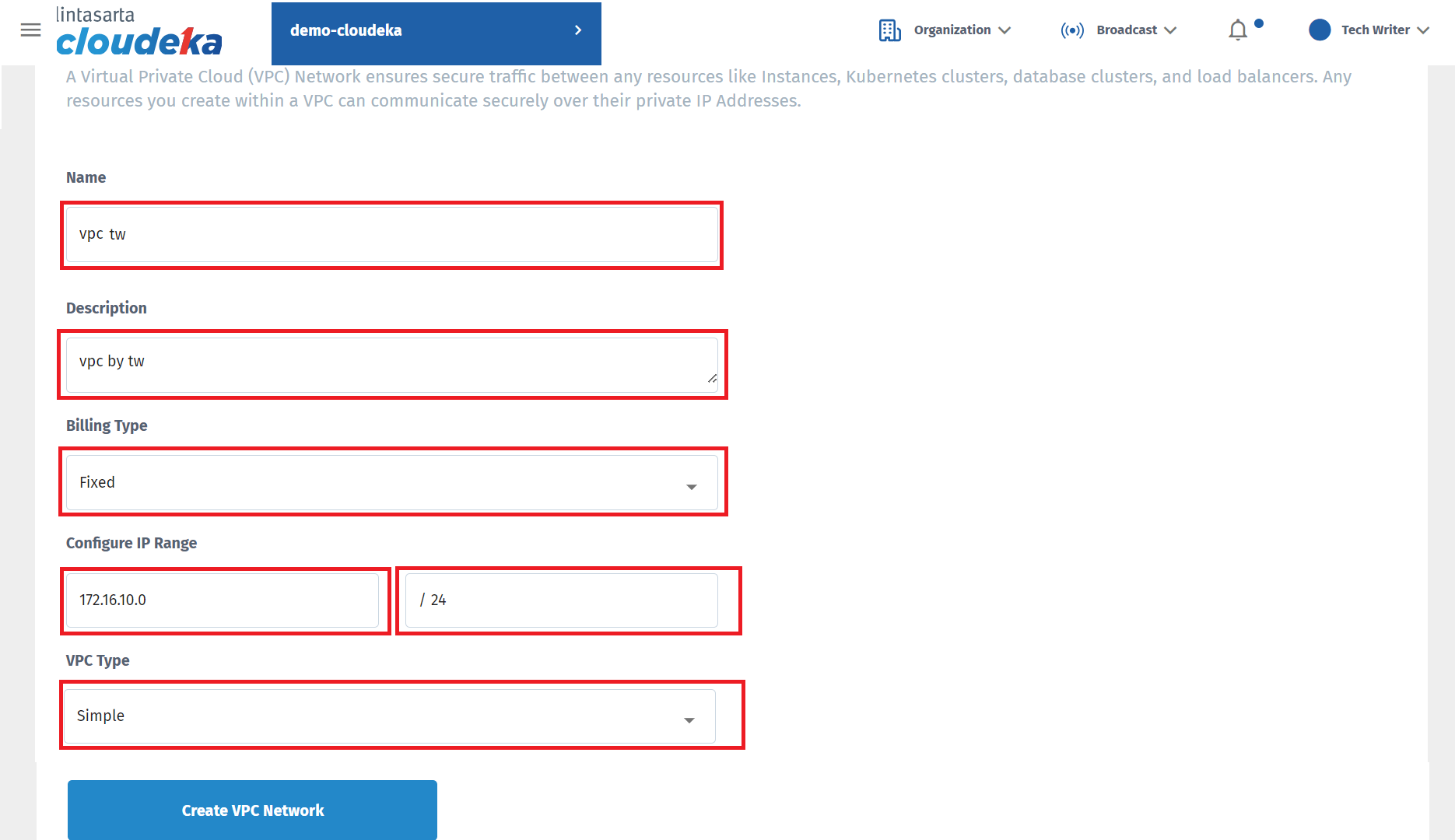

Create VPC Network Form
  • There will be a notification if the VPC Network is successfully created "VPC network has been successfully created".

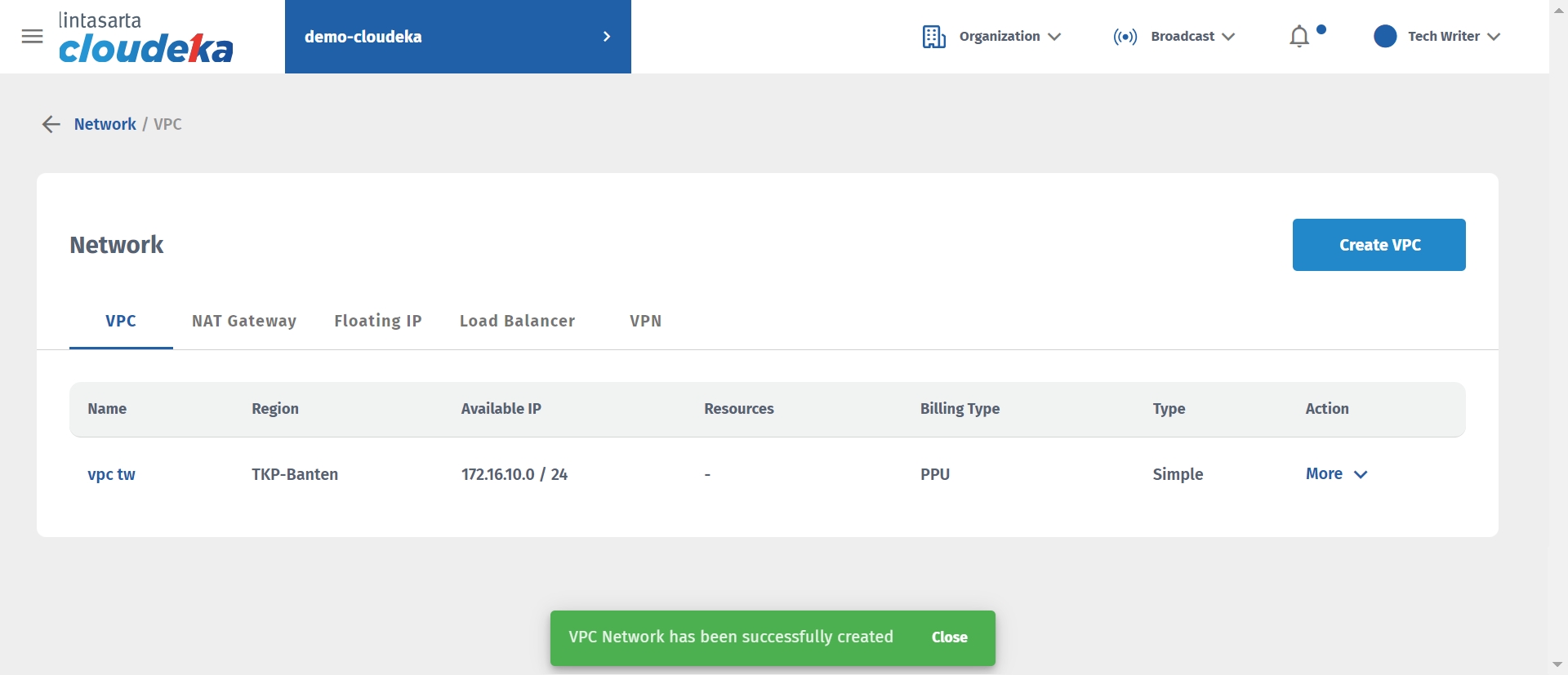

Notification
