Create Routed Network

Here are the steps to create a routed network type in the Network menu:

  • On the Network page click the Create Network button.

Create Routed Network

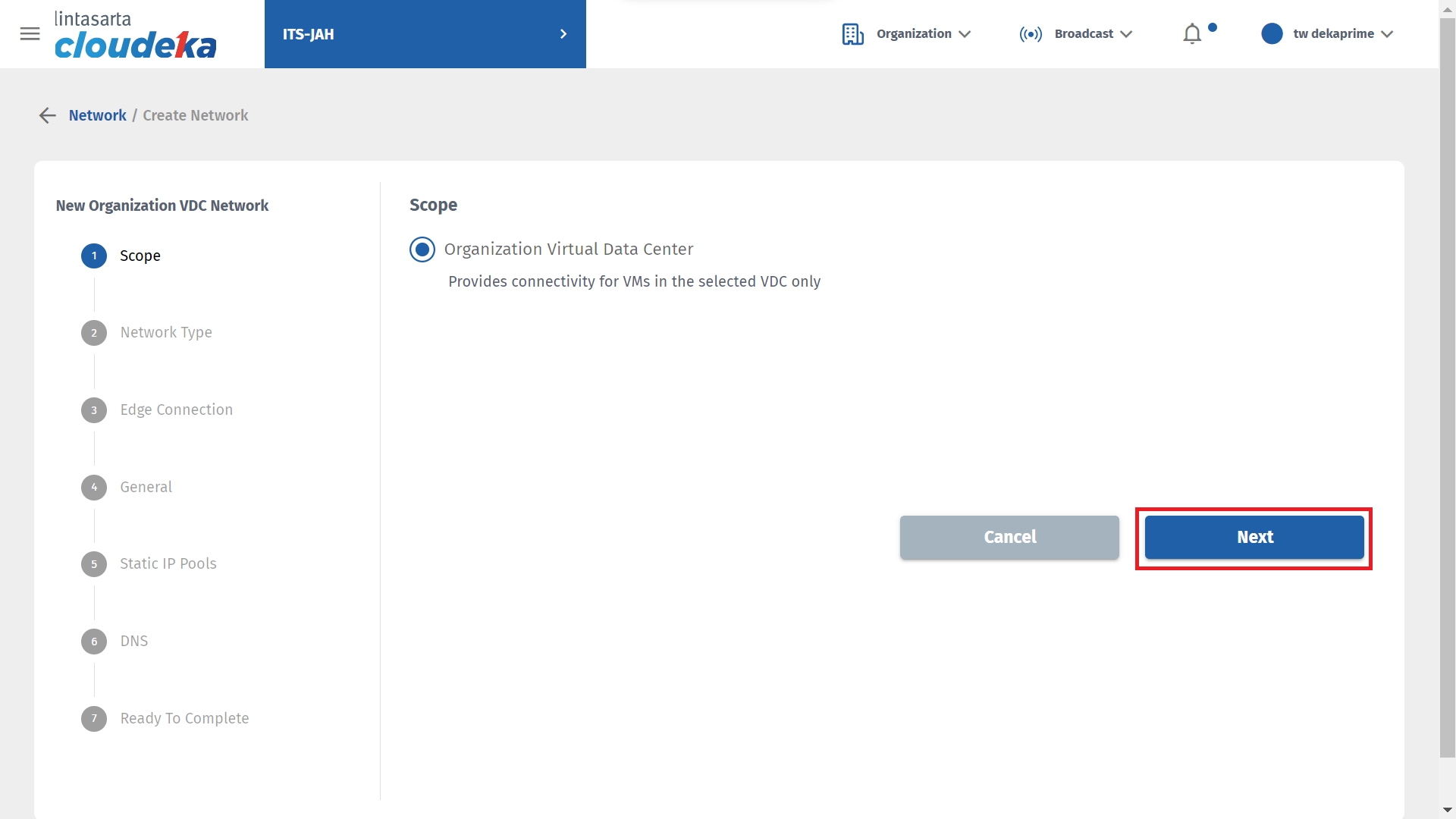

  • In the Scope section click the Next button.

Create Routed Network (b)

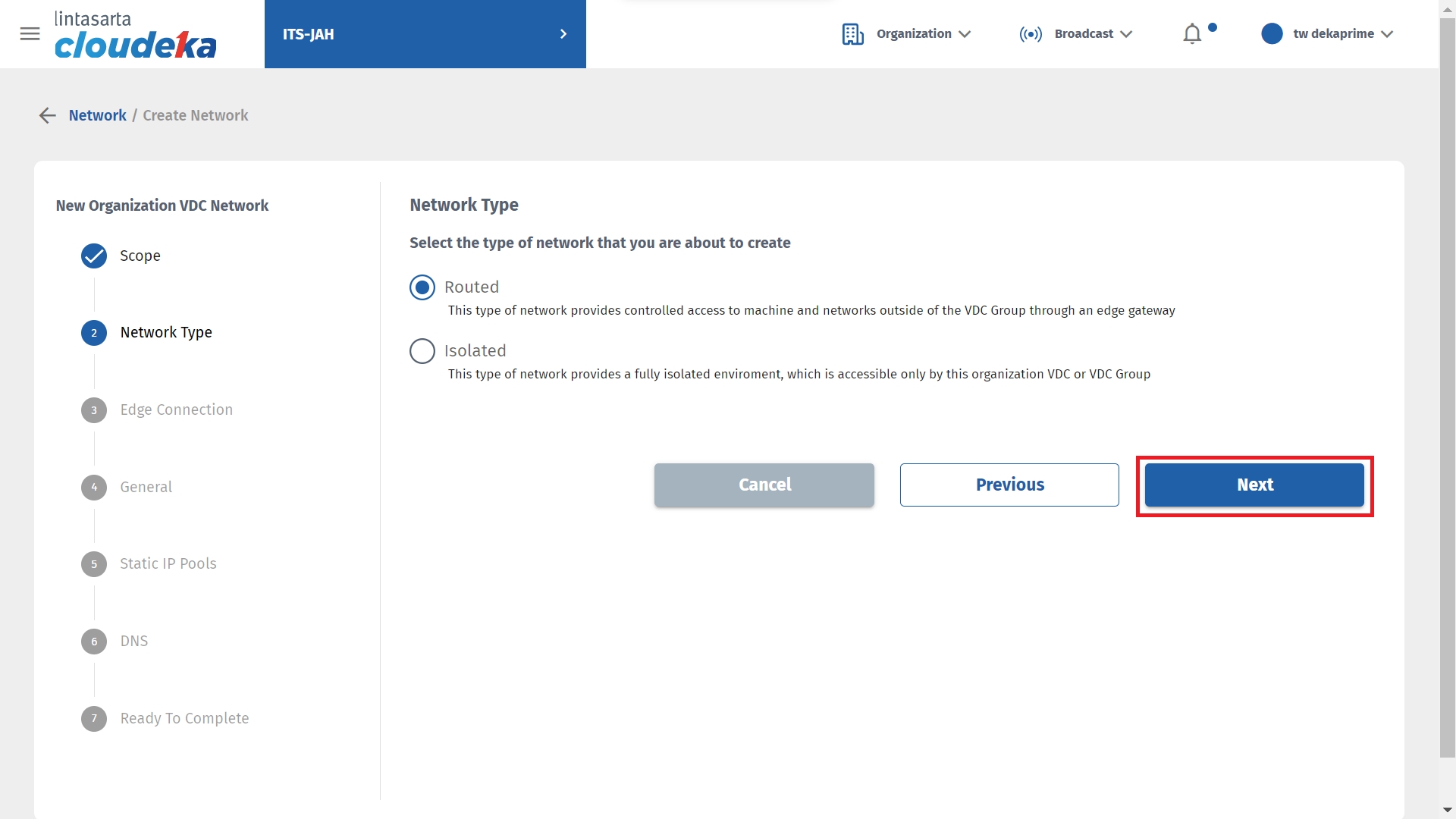

  • In the Network Type section select Routed and click the Next button.

Create Routed Network (c)

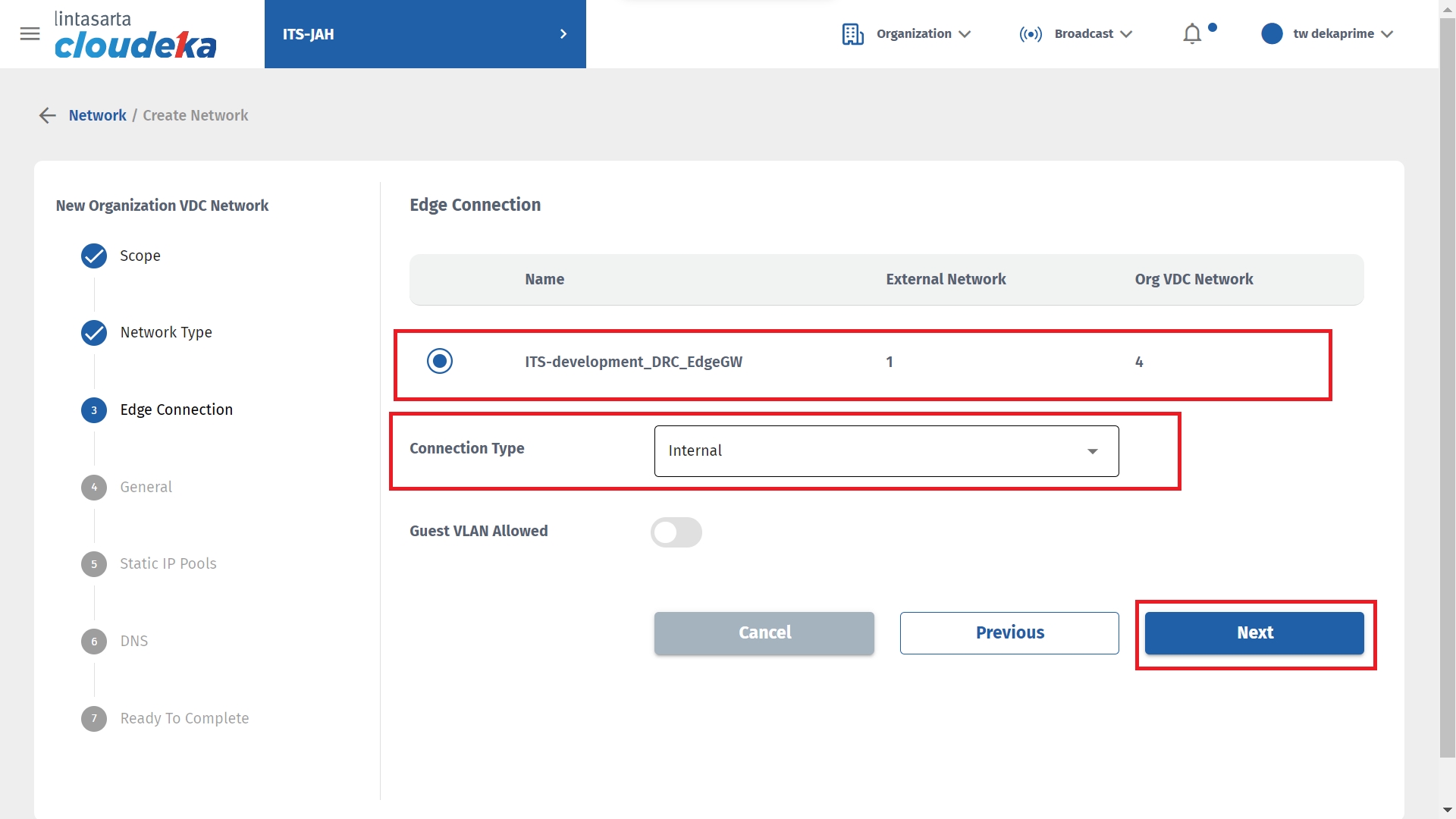

  • In the Edge Connection section select available connections, in connection type there are three options: Internal, Distributed, Subinterface, and then click the Next button.

Create Routed Network (d)

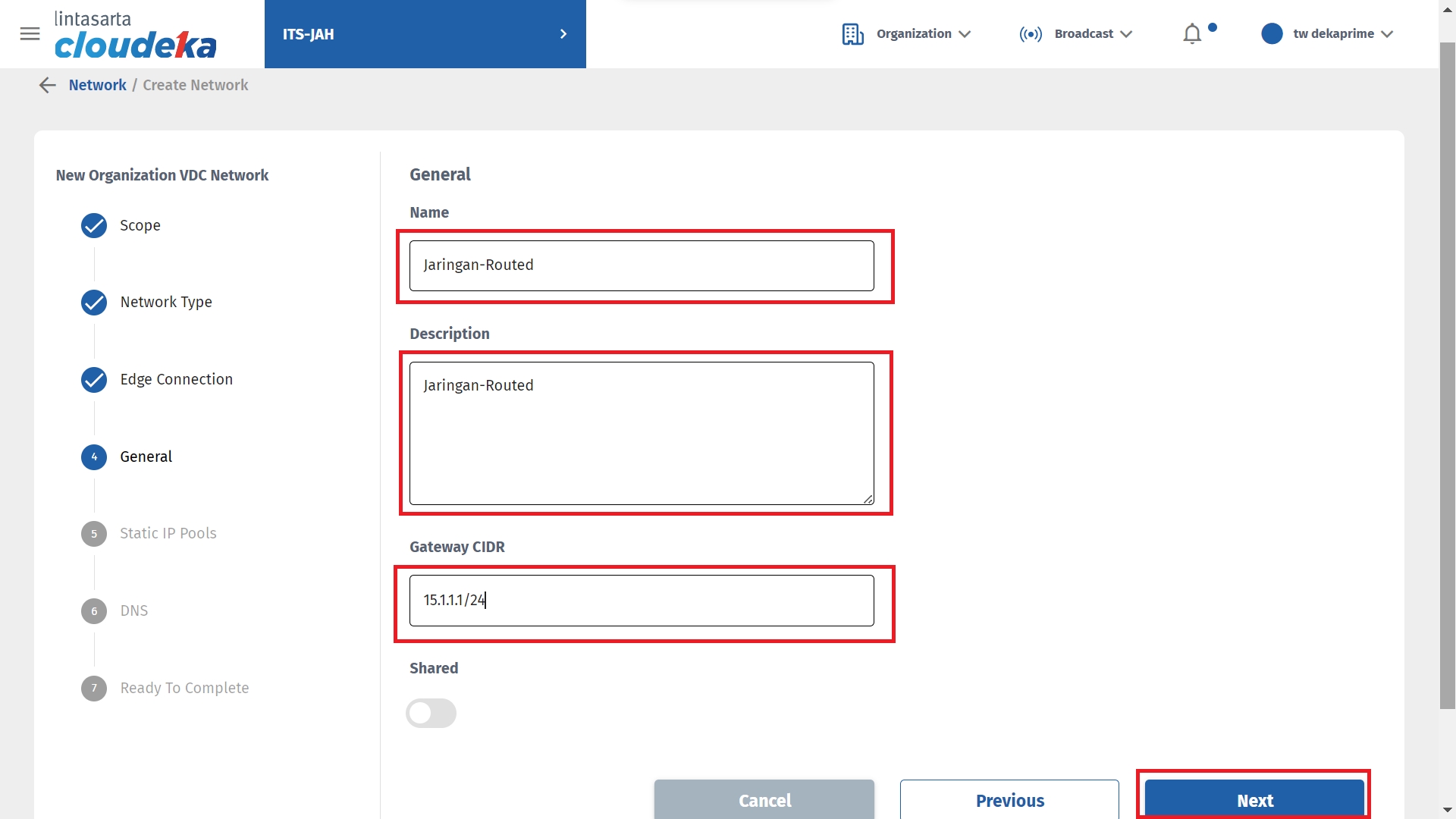

  • In the Generalize Name, Description, CIDR Gateway section, enable Shared if you need, and then click the Next button.

Create Routed Network (e)

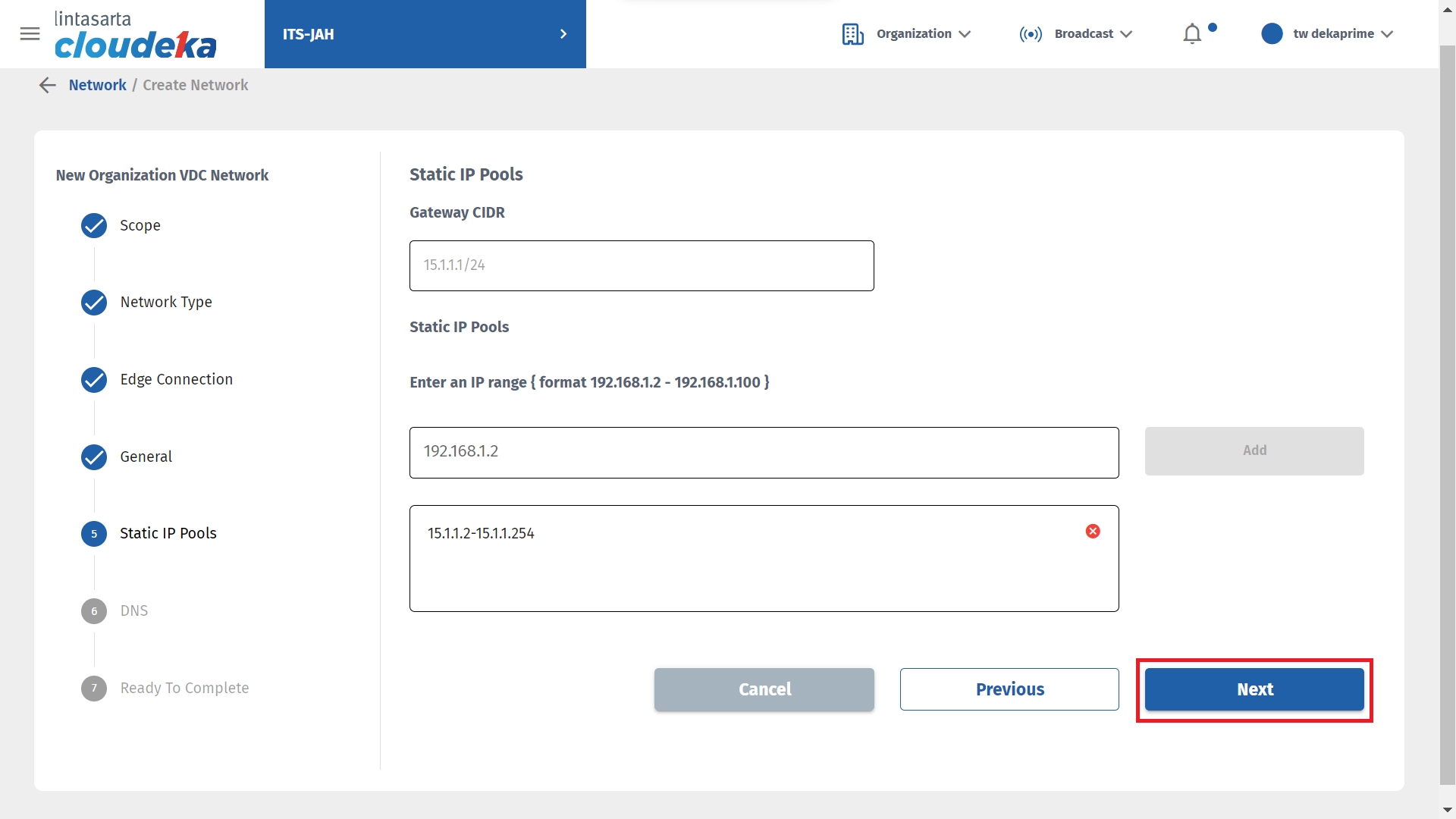

  • In Static IP Pools enter the IP range corresponding to the IP entered in the CIDR Gateway and click the Add button. Click the Next button to continue with the process.

Create Routed Network (f)

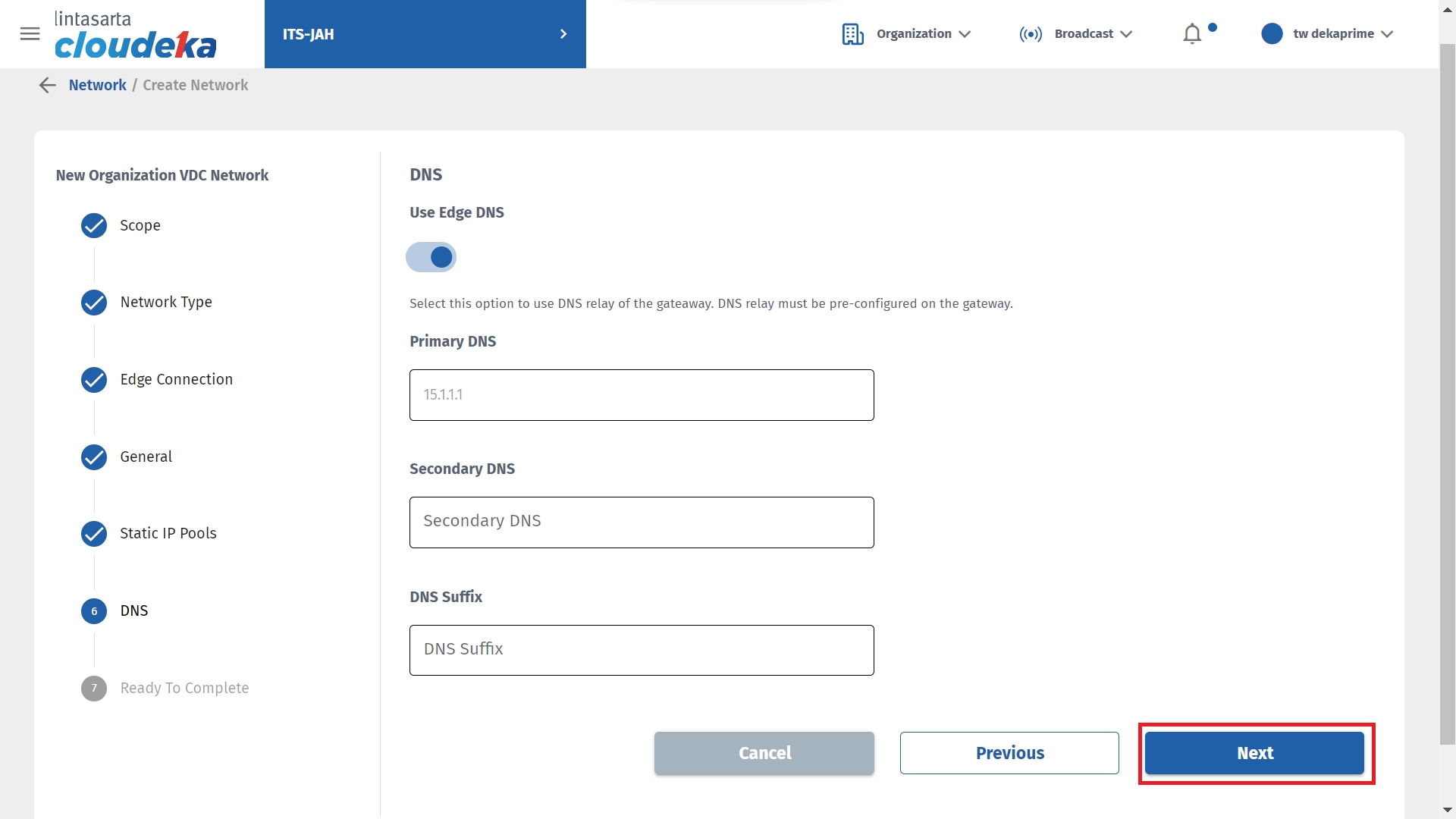

  • On the DNS page click the Next button.

Create Routed Network (g)

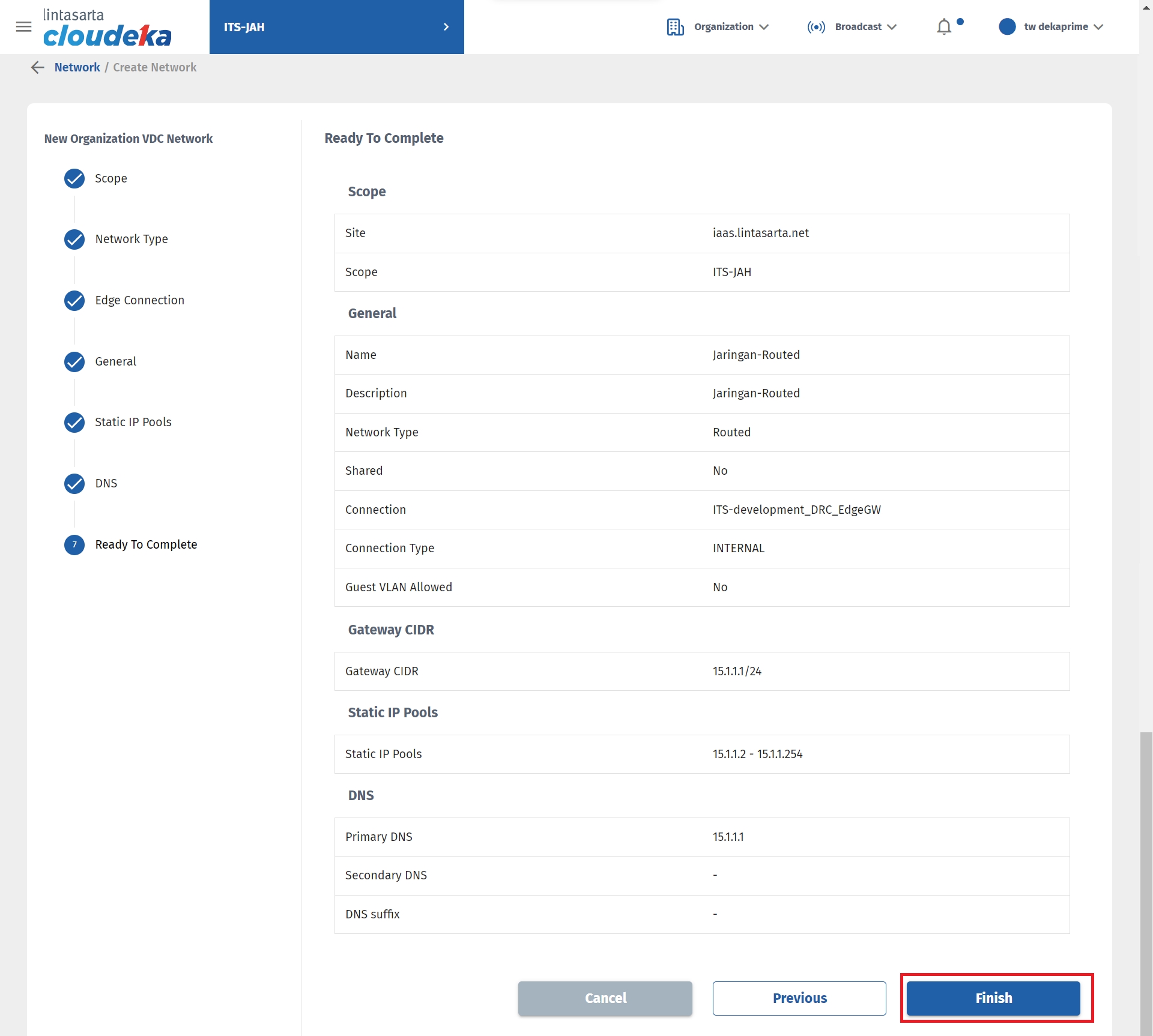

  • On the Ready To Complete page click the Finnish button. Show notifications "Network has successfully created!"

Create Routed Network (h)

  • On the Network page, a Routed type network is already available in the List of Networks table.

Create Routed Network
