Create Isolated Network

Here are the steps to create an isolated type network in the Network menu:

  • On the Network menu page click Create Network.

Create Isolated Network

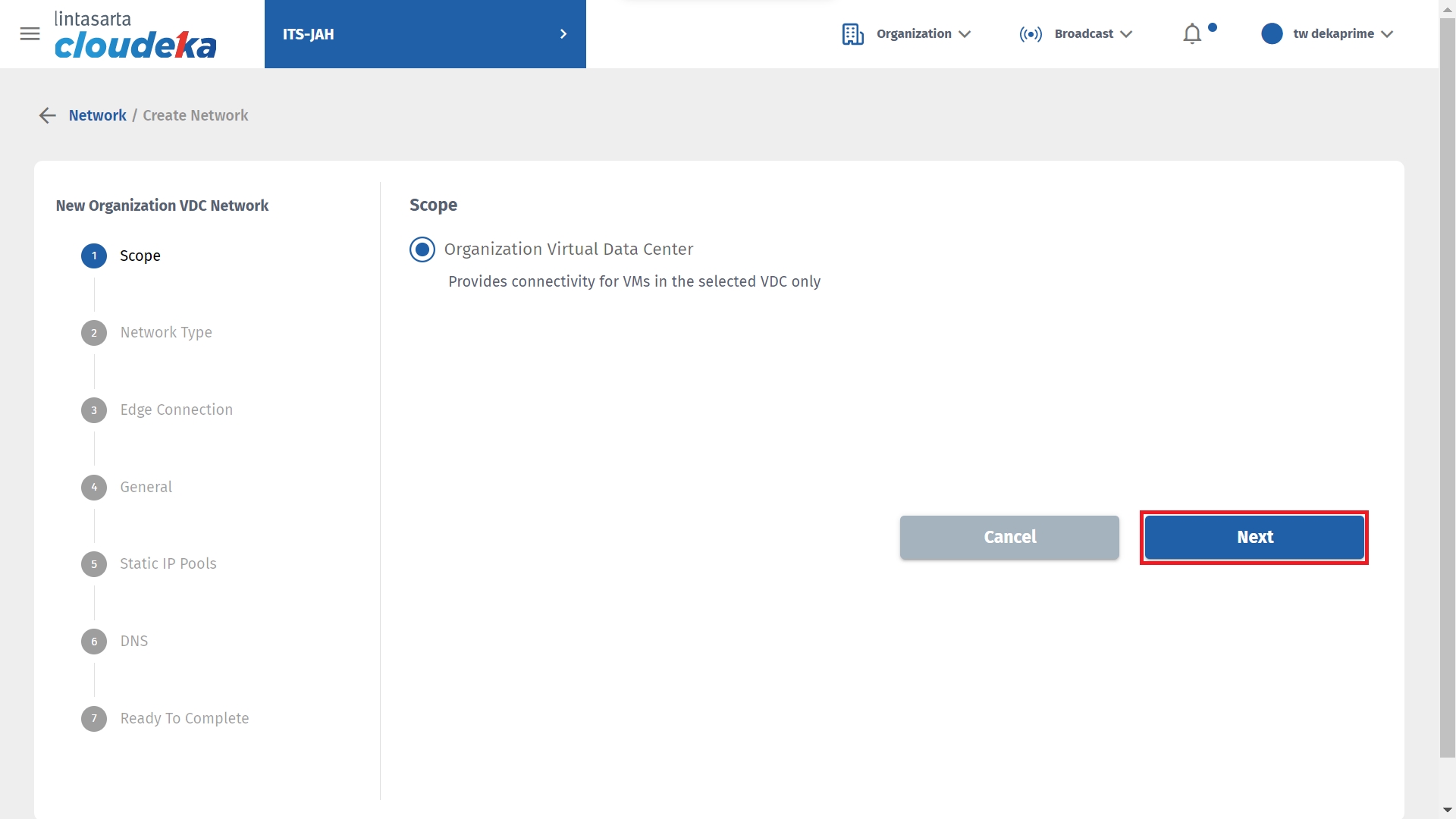

  • In the Scope section click the Next button.

Create Isolated Network (b)

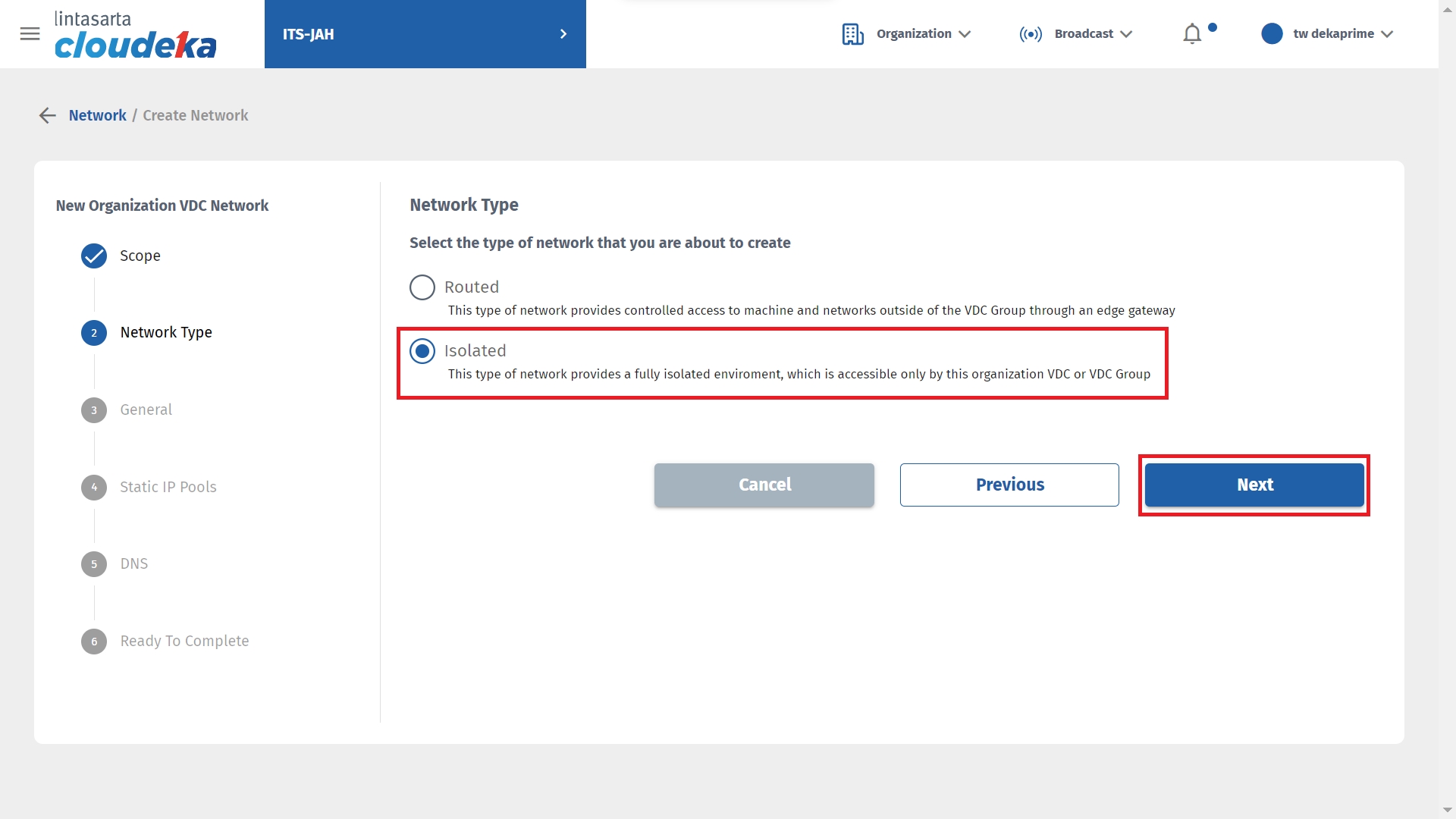

  • In the Network Type section select Isolated and click the Next button.

Create Isolated Network (c)

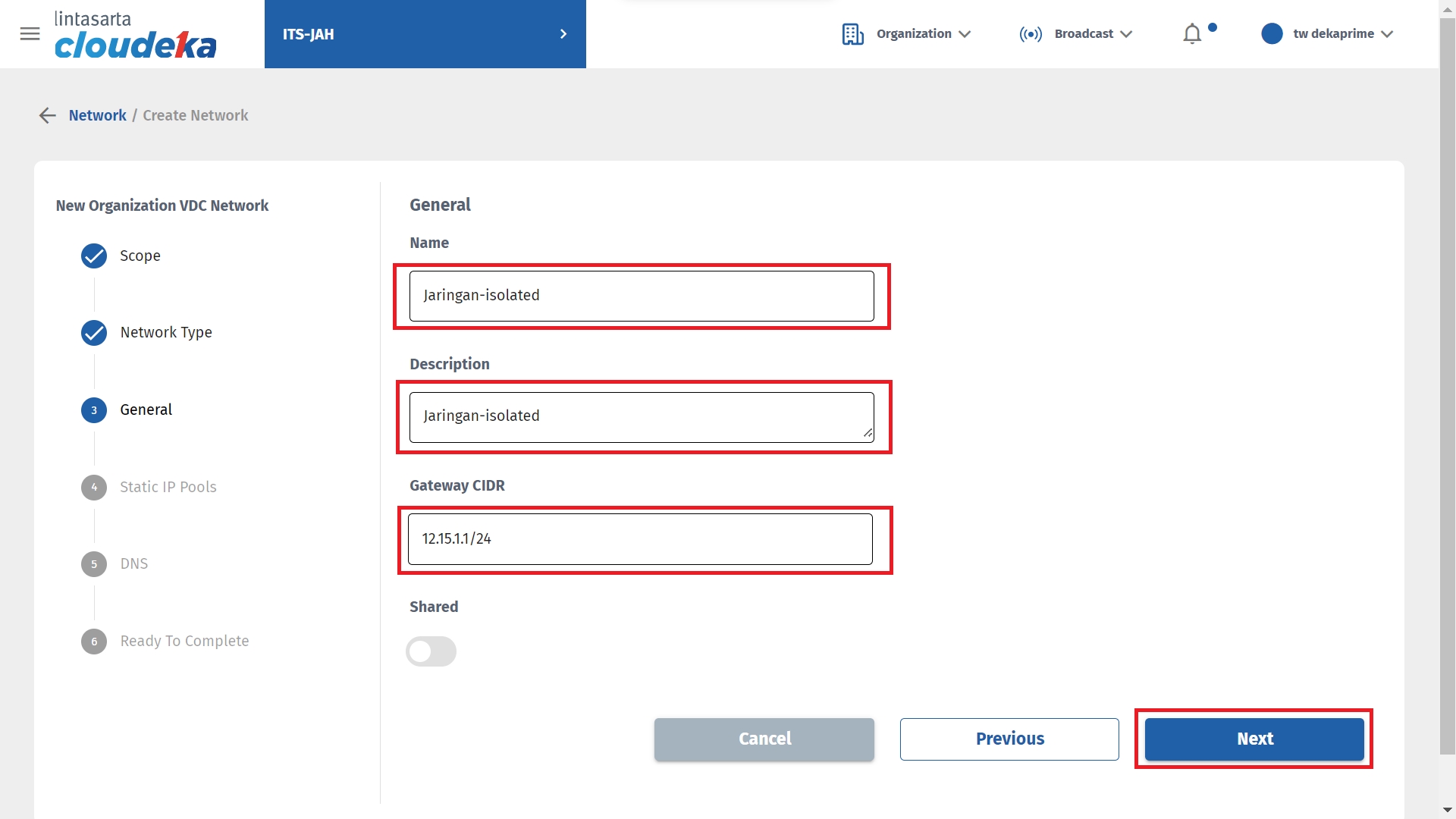

  • In Generalize Name, Description, CIDR Gateway, enable Shared if you need, and then click the Next button.

Create Isolated Network (d)

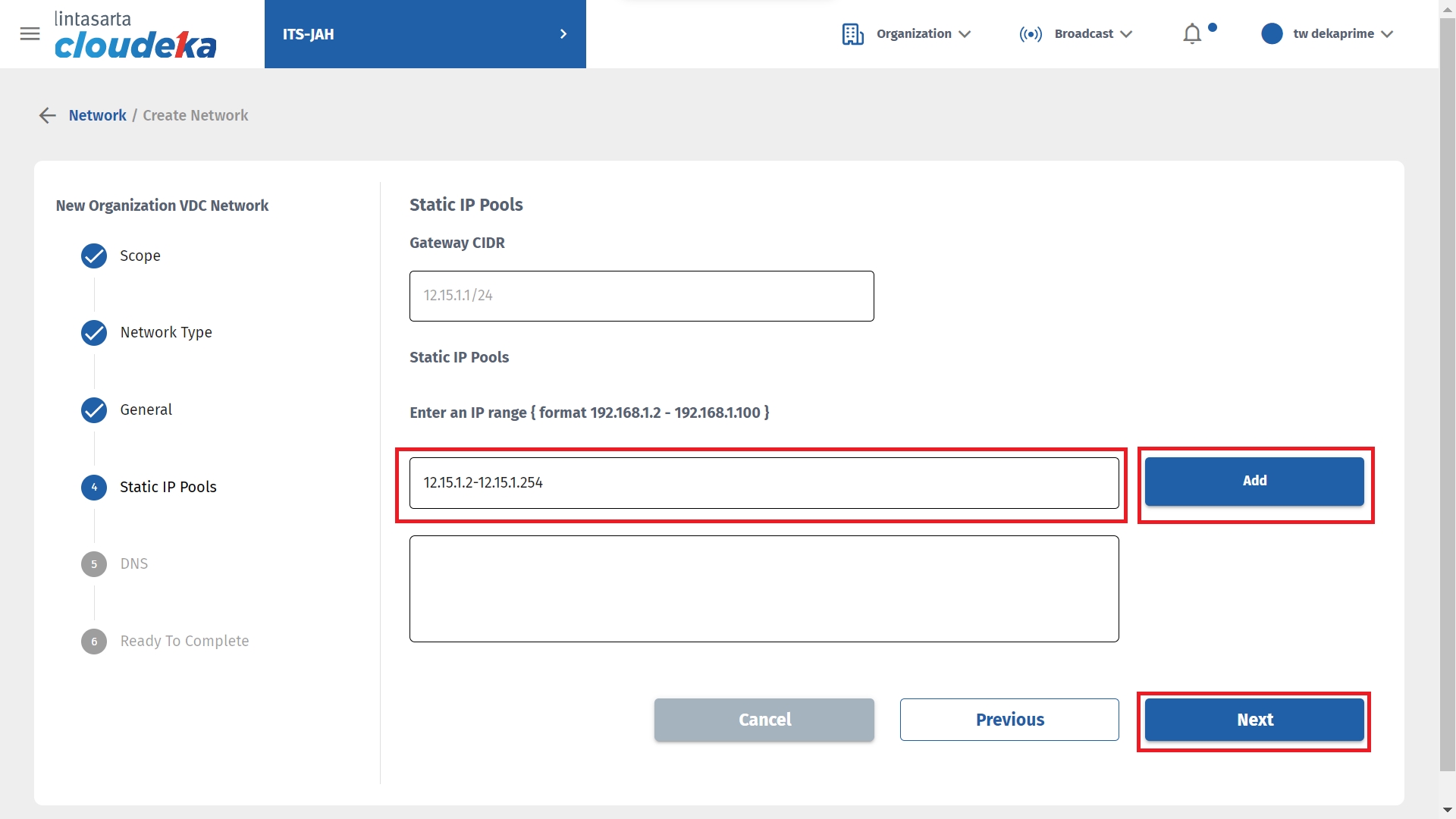

  • In Static IP Pools fill the IP range and click Add to add the next click the Next button to continue with the process.

Create Isolated Network (e)

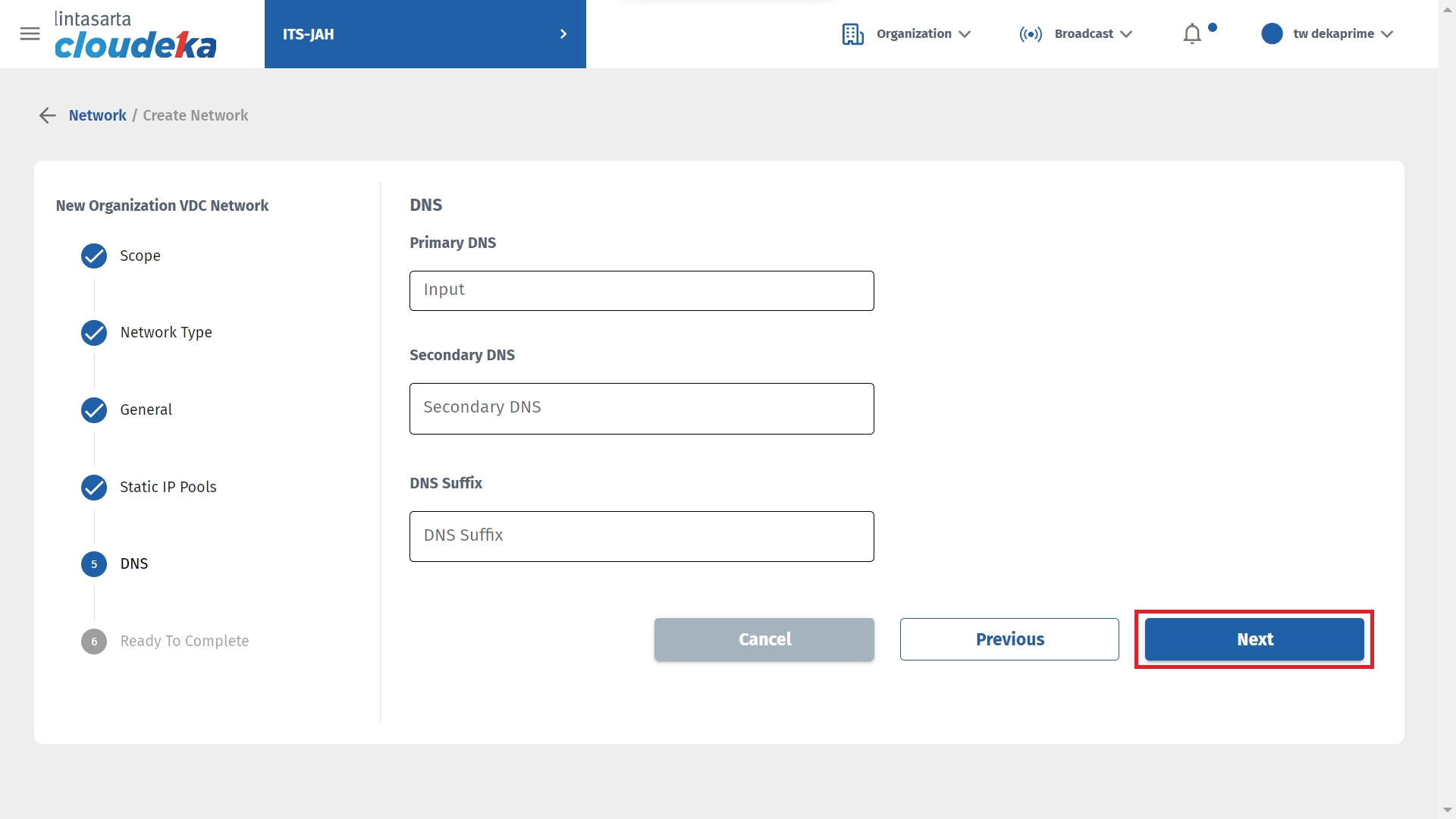

  • In DNS customize your needs by setting the Primary DNS, Secondary DNS, and DNS Suffix, and clicking the Next button to continue with the process.

Create Isolated Network (f)

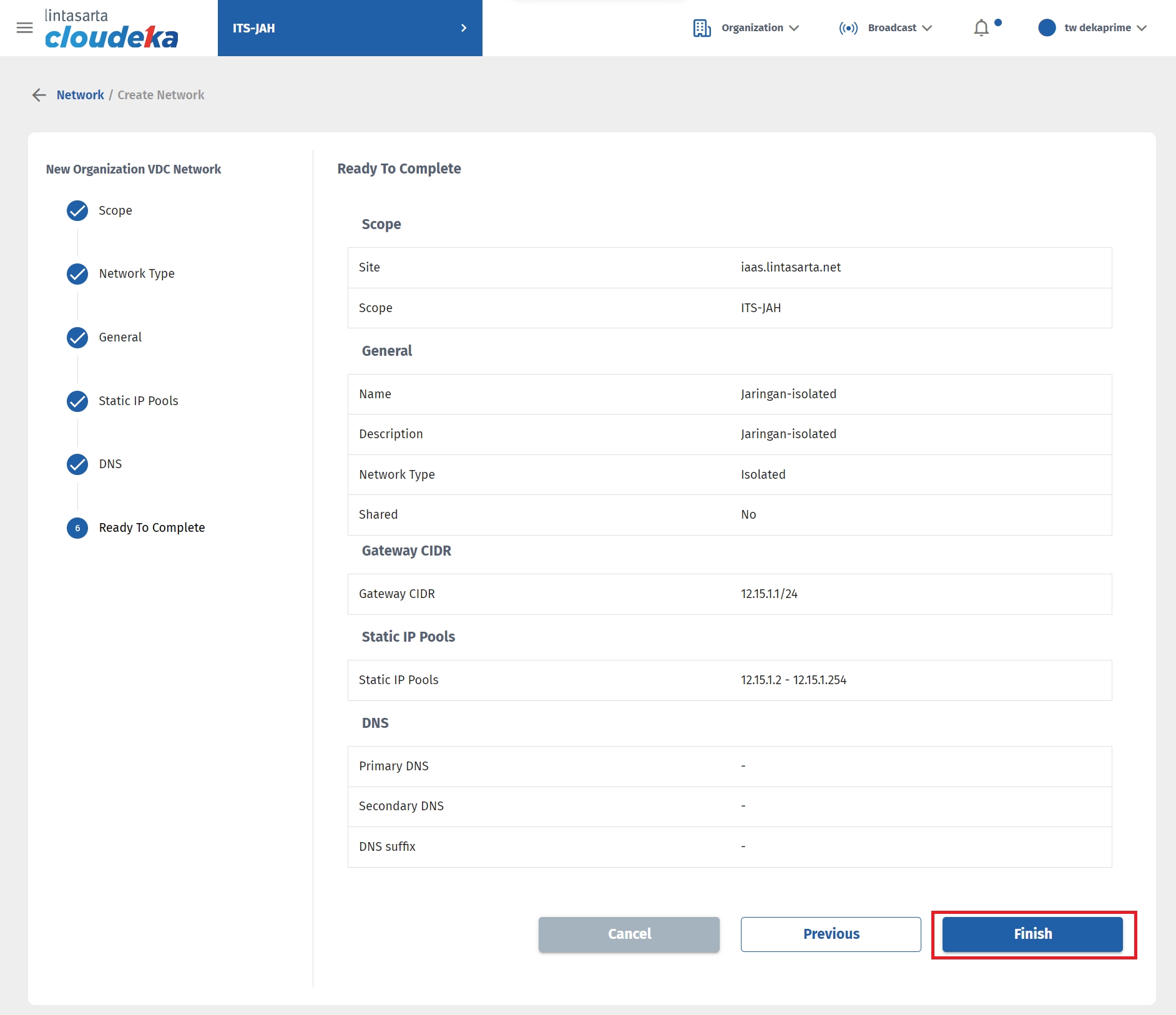

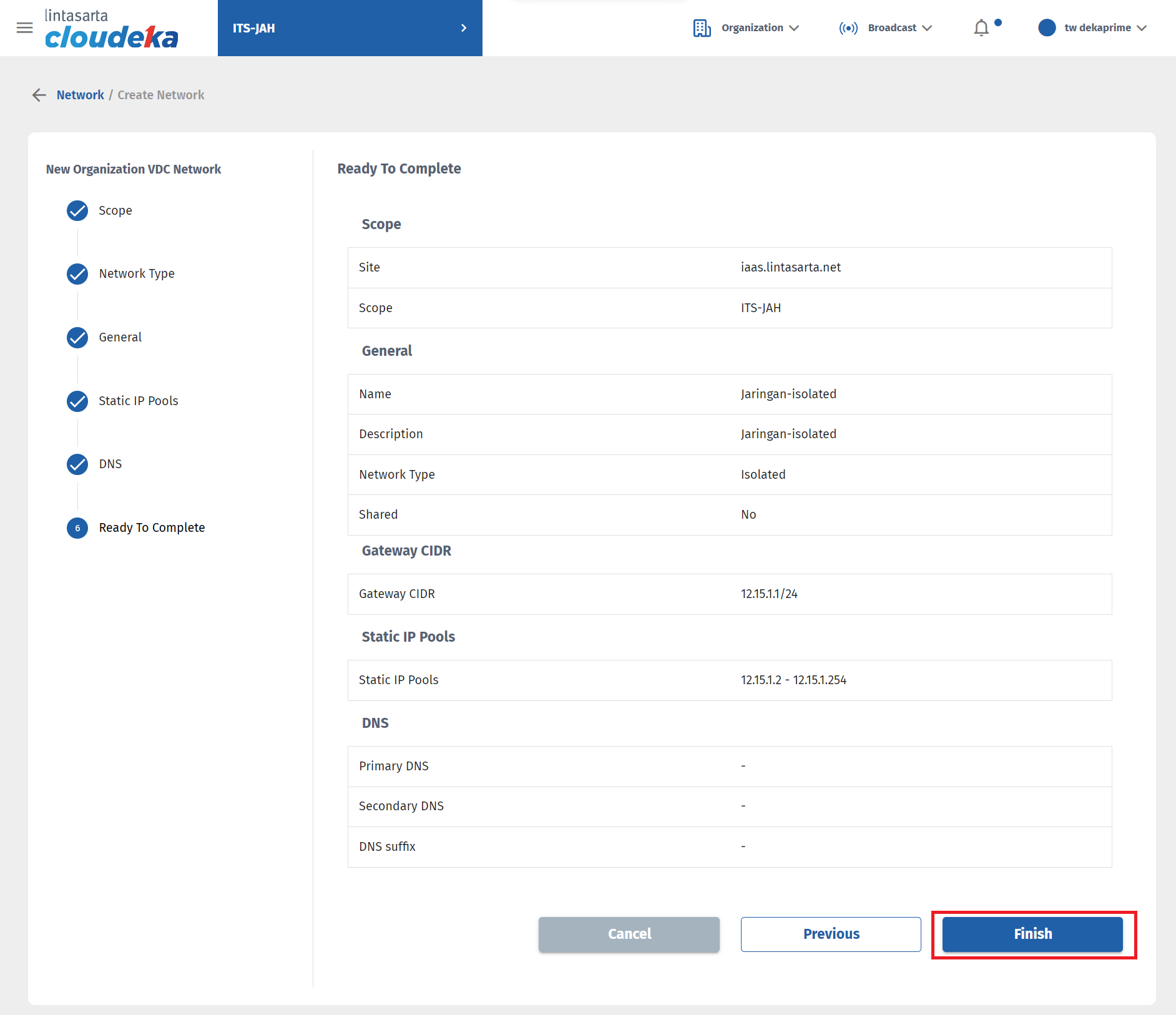

  • In Ready To Complete, click the Finnish button to continue with the configuration summary. Show notifications "Network has successfully created!"

Create Isolated Network (g)

  • On the Network page, the Isolated-type network is already available in the List of Networks table.

Create Isolated Network
