Create IPsec

To create IPsec you have to fill in several columns on the IPsec page including:

Column
Description

Phase 1 - Remote VPN

VPN IP address on the destination project.

Phase 1 - Pre Shared Key

Keywords must be the same as the goal project.

Phase 2 - Remote Subnet

IP address of the subnet on the destination project

Here are the steps to create IPsec:

  • On the Network page, select the VPN tab, and select Configuration in the More column.

Create IPsec

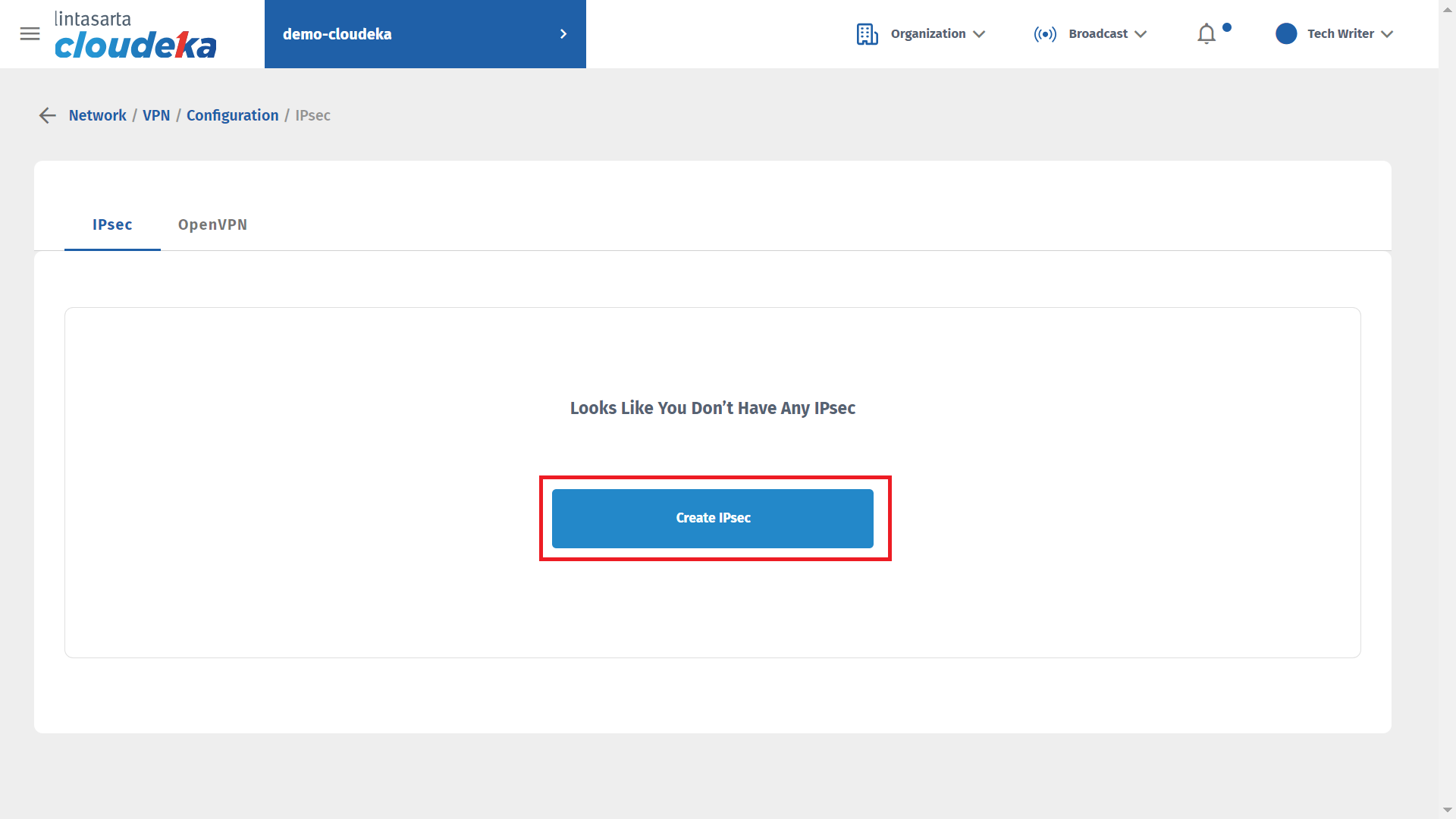

  • Select the IPsec tab and click the Create IPsec button.

Create IPsec

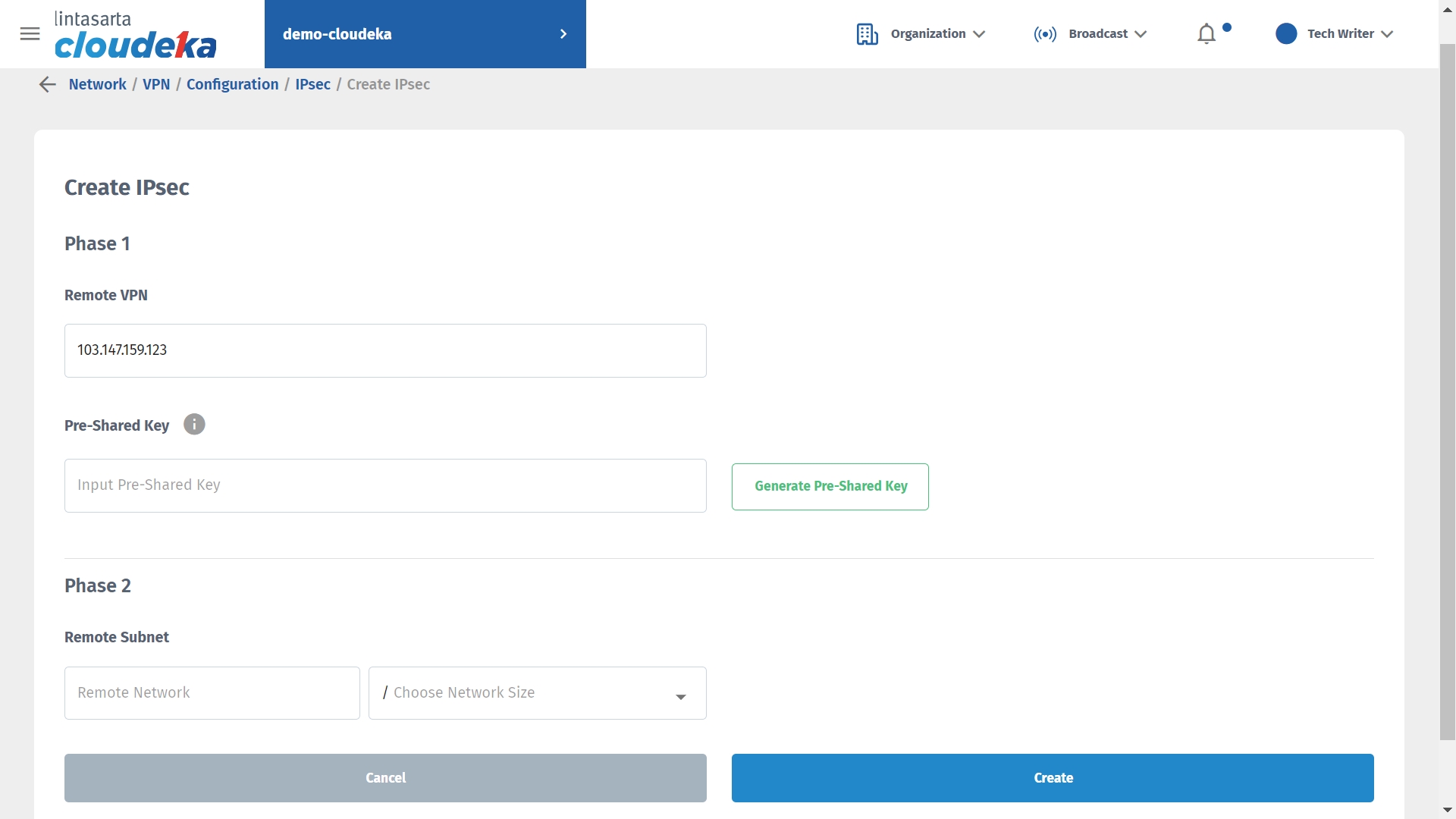

  • In the Remote VPN section, fill in the IP address of the destination VPN project.

Create IPsec

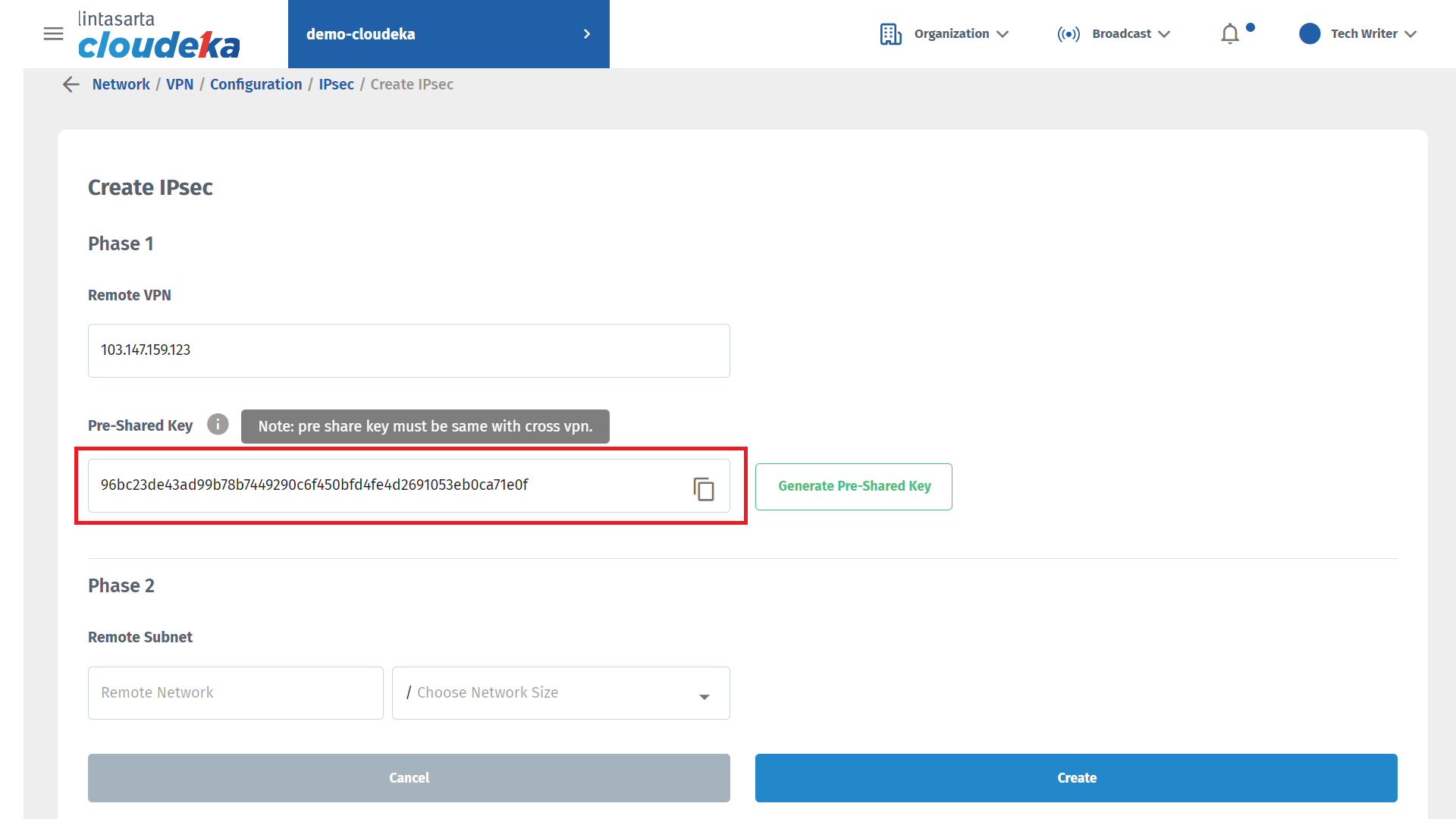

  • Press the Generate Pre-Shared Key button if you don't have a key yet, whereas if you already have the key from the target project, paste it into the Pre-Shared Key column.

Create IPsec

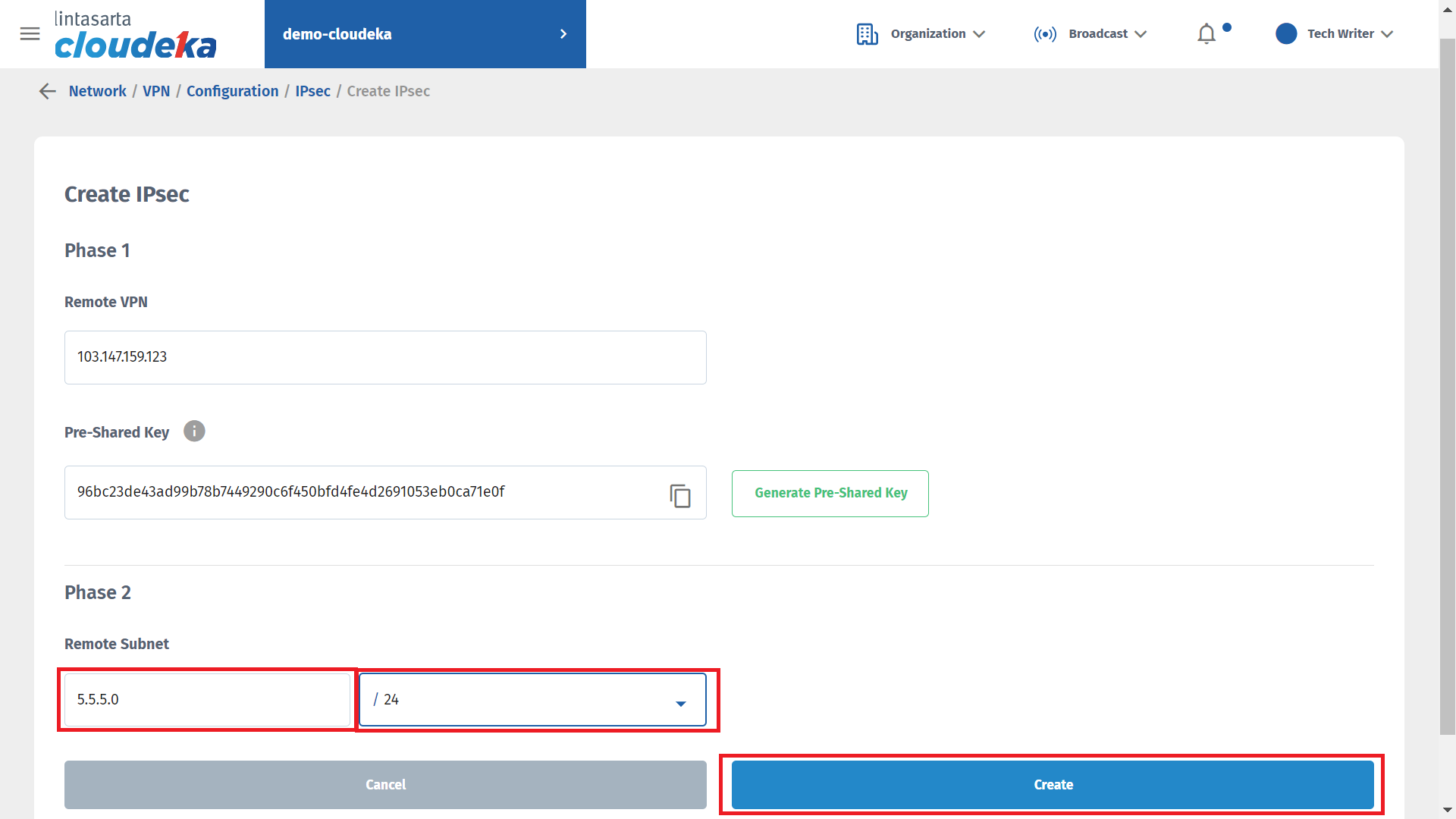

  • Fill in Remote Subnet with the subnet IP address and prefix used in the destination project.

Create IPsec

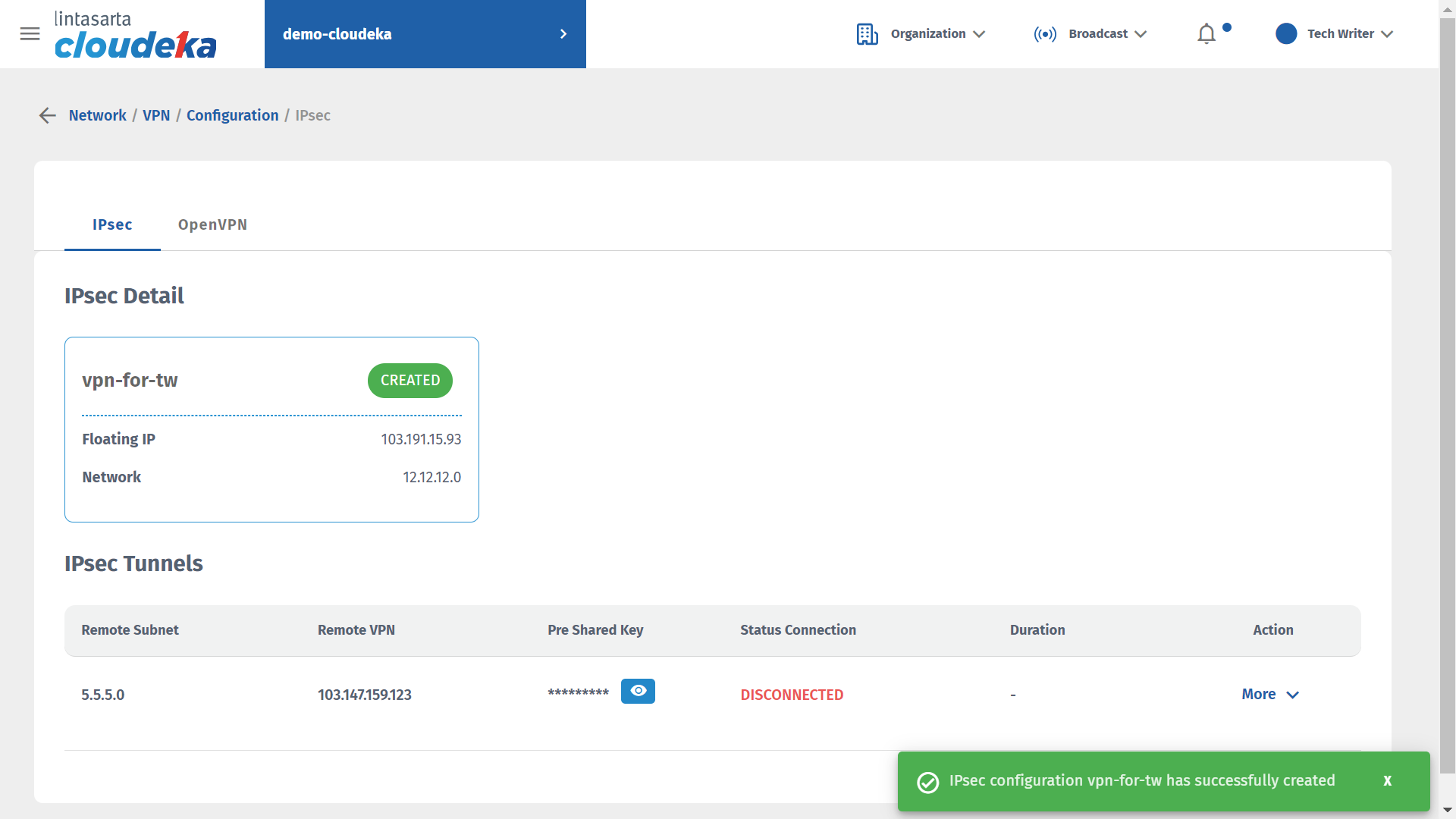

  • A notification appears "IPsec configuration [vpn-name] has been successfully created".

Create IPsec
