Remote Instance using Putty

In this guide we will run virtual remote control of the Cloudeka portal service machine using PuTTY from your computer.

To run remote control of virtual machines using putty, make sure you have done the following configuration: a. Create VPC. b. OpenVPN Configuring c. IPsec Configuring

The case examples used in this guide are two projects, each of which has a virtual machine on an Instance in the Cloudeka portal service. The following IP addresses are used in each project.

Column	Project A	Project B
(a) VPN - Floating IP	103.191.14.149	103.168.135.220
(b) VPN - Network	10.10.10.0	10.20.20.0
(c)VPN - Network OpenVPN	20.20.20.0/24	-
(d) Instance - Gateway IP	10.10.10.1	10.20.20.1
(e) Instance - Internal IP	10.10.10.55	10.20.20.6

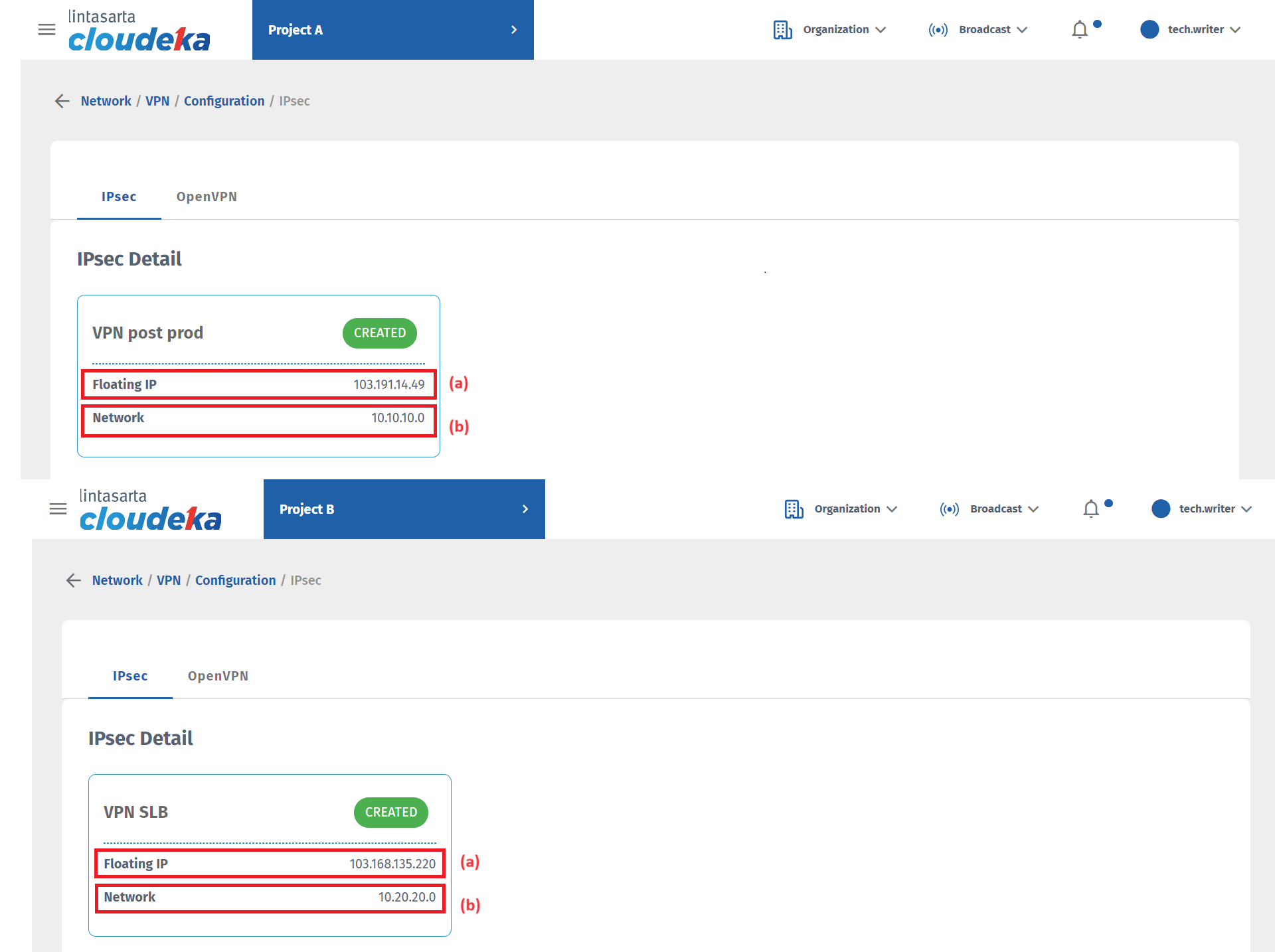

Project A, Project B - Floating IP & Network

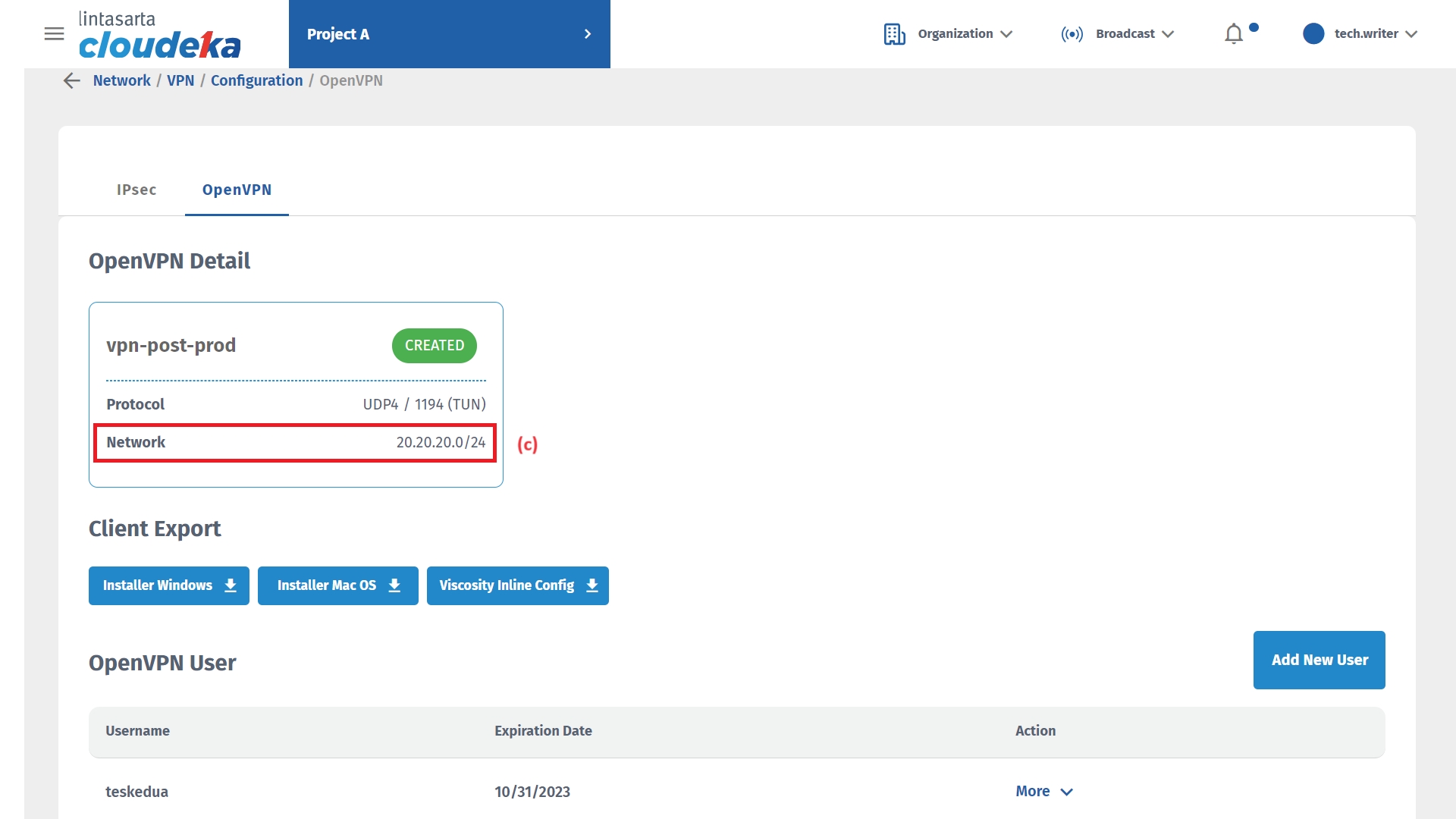

Project A - Network OpenVPN

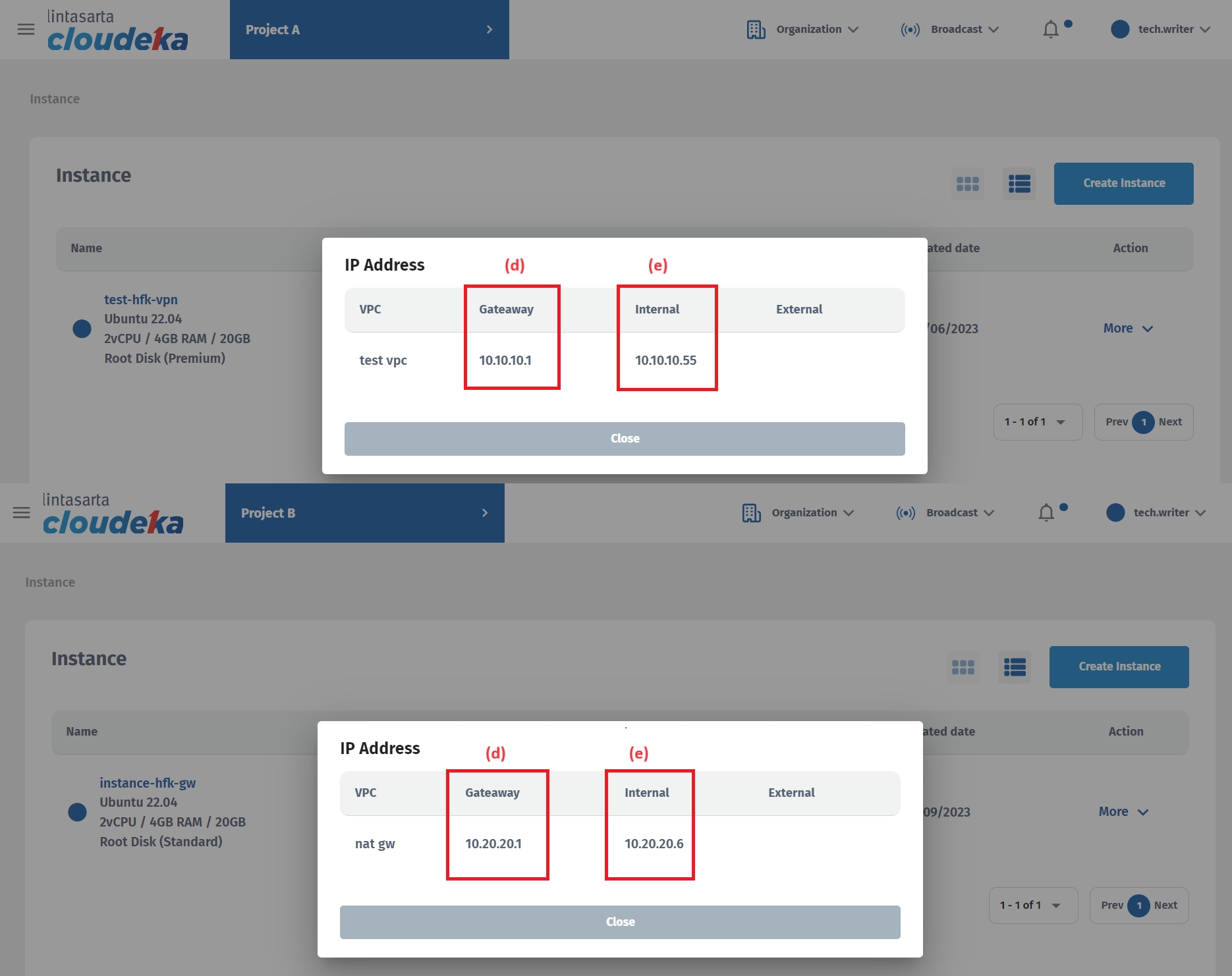

Project A, Project B - Gateway IP & Internal IP

Here are the steps to run remote control of virtual machines in the Cloudeka portal service using PuTTY:

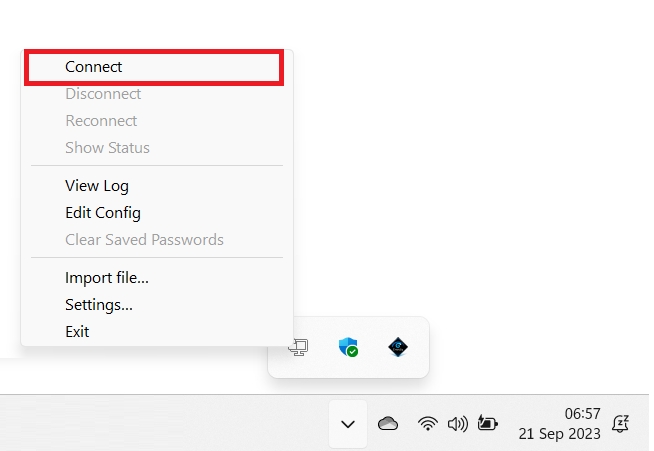

• Make an OpenVPN connection using Viscosity Inline from Project A.

Remote Instance using Putty (a)

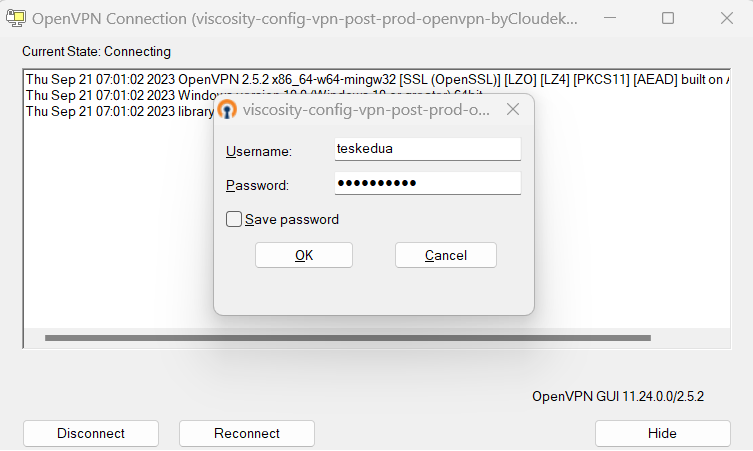

• Enter the Username and Password used according to the OpenVPN User list in Project A.

Remote Instance using Putty (b)

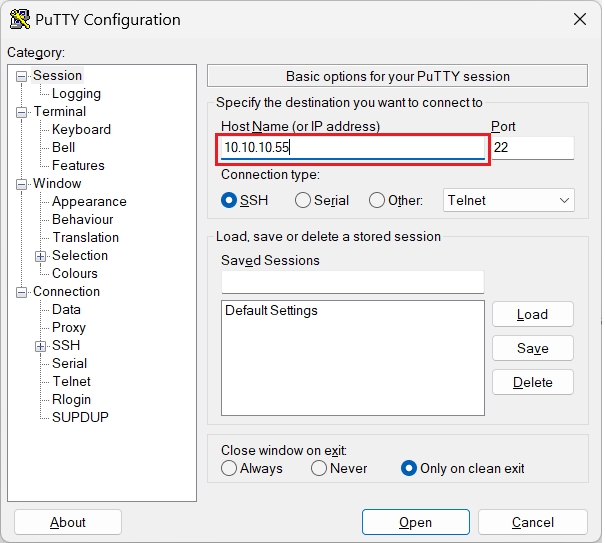

• Run putty on your computer. Enter the IP address used by the virtual machine in Project A.

Remote Instance using Putty (c)

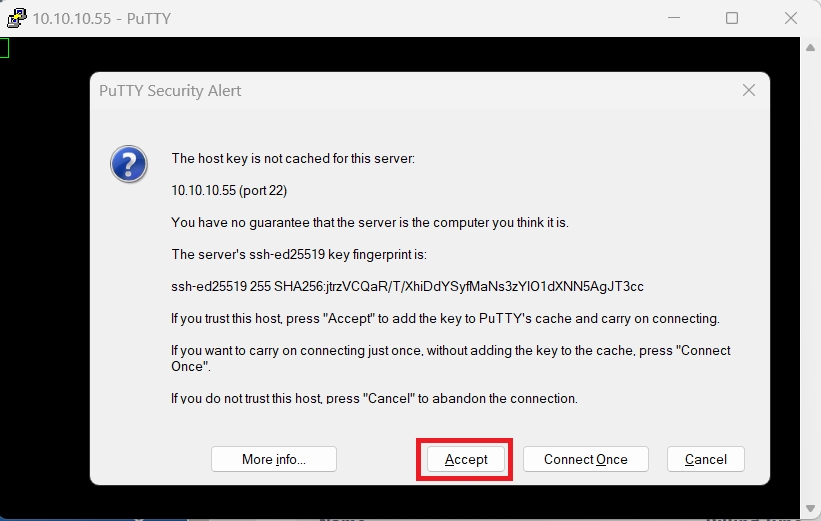

• Press the Accept button to enter the Project A virtual machine.

Remote Instance using Putty (d)

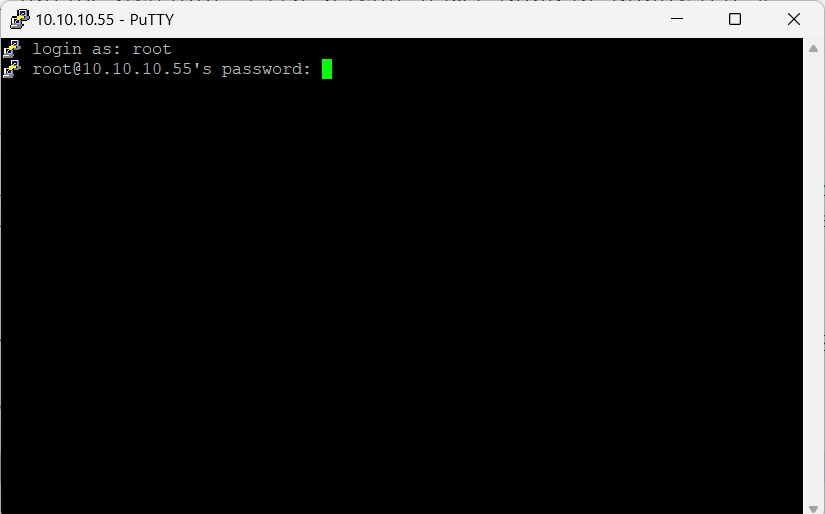

• Enter the username and password used by the virtual machine.

Remote Instance using Putty (e)

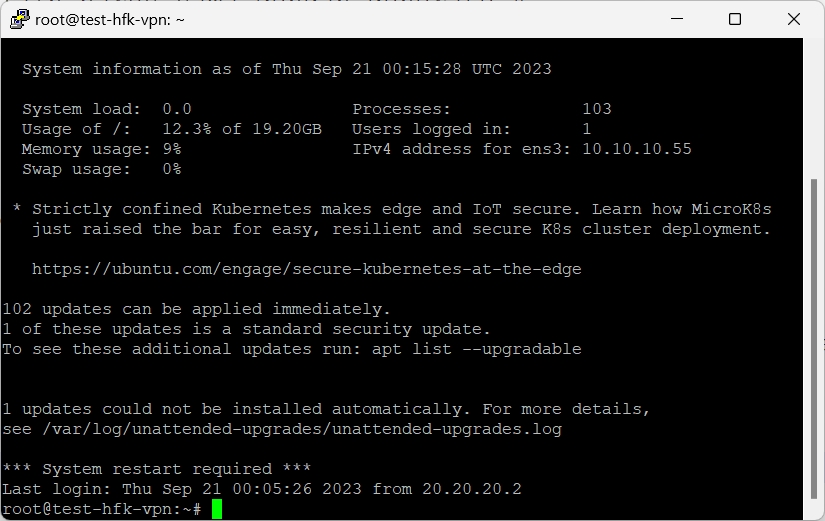

• You have successfully logged into the Project A virtual machine.

Remote Instance using Putty (f)

To be able to test the connection to Project B, you must conImage Security on Project A on the Cloudeka portal service, namely adding the IP address of the subnet used by Project B.

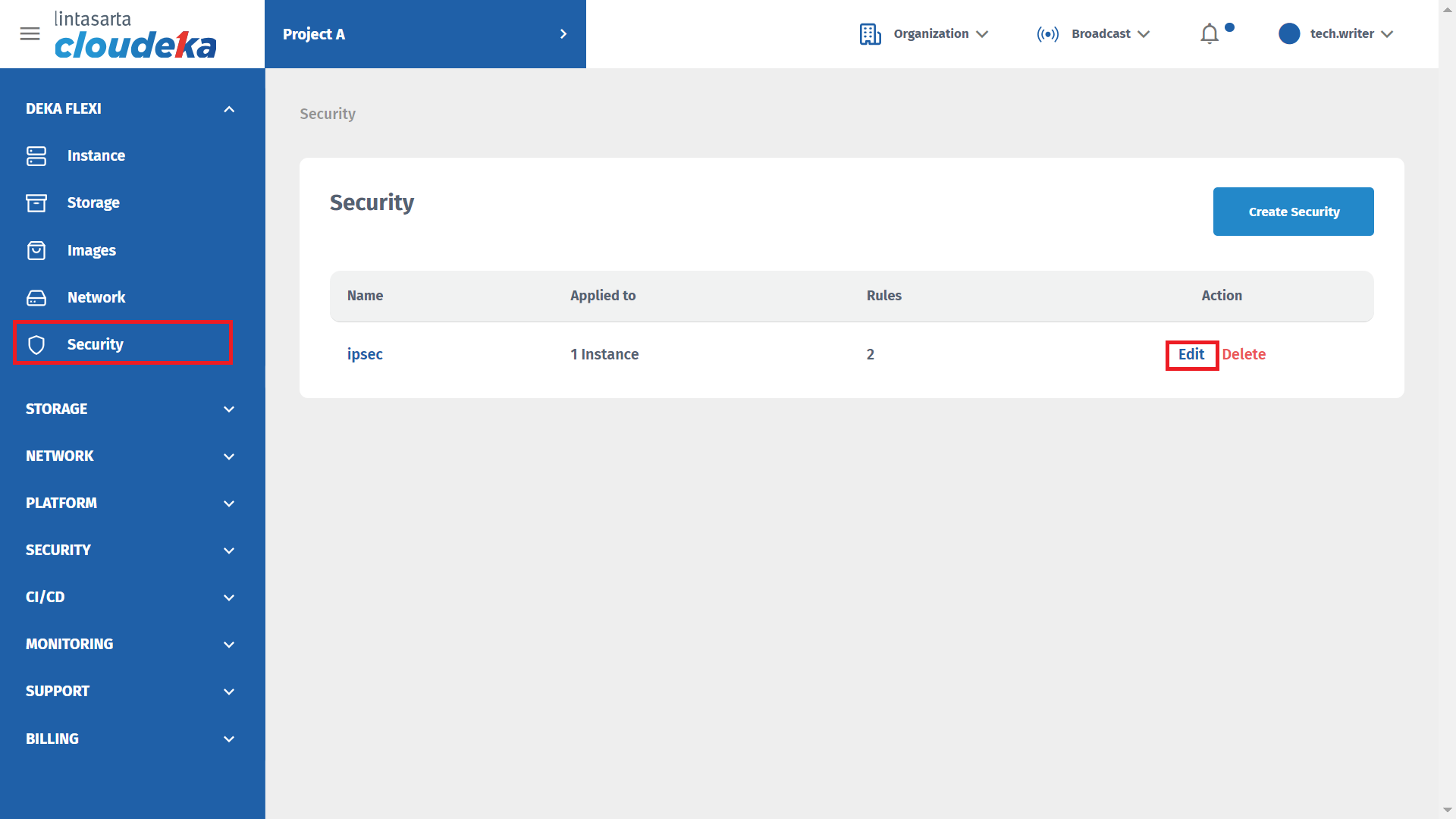

• On the Project A page in the Cloudeka Portal service, select the Security menu and press the Edit button to make configuration changes.

Remote Instance using Putty (g)

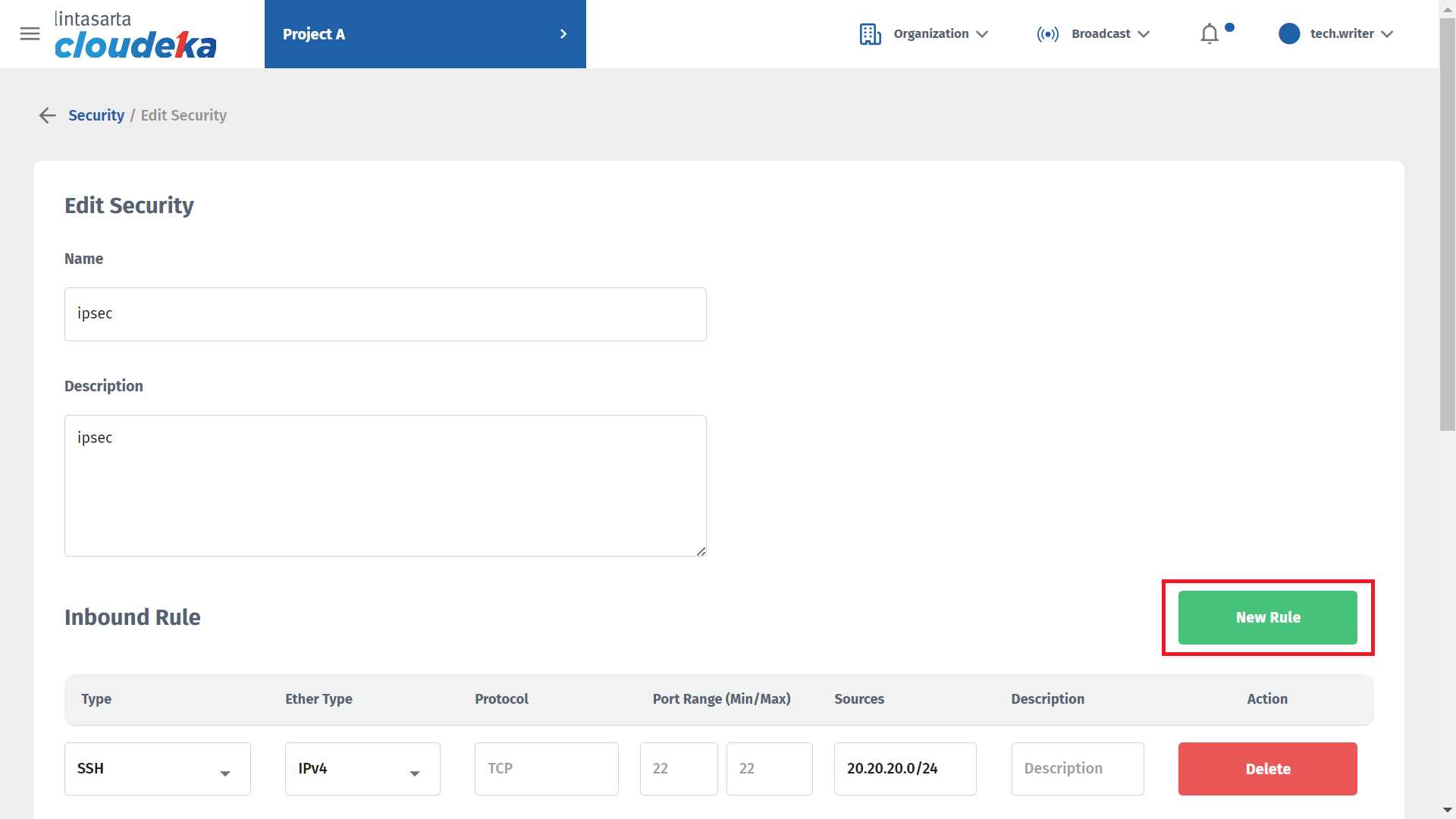

• On the Edit Security page, you will add two new rules to Inbound by pressing the New Rule button.

Remote Instance using Putty (h)

• The first type of rule is SSH, while the second type of rule is All ICMP Rule. In each Source column for both Types, enter the IP address of the subnet used by Project B, namely 10.20.20.0/24.

Remote Instance using Putty (i)

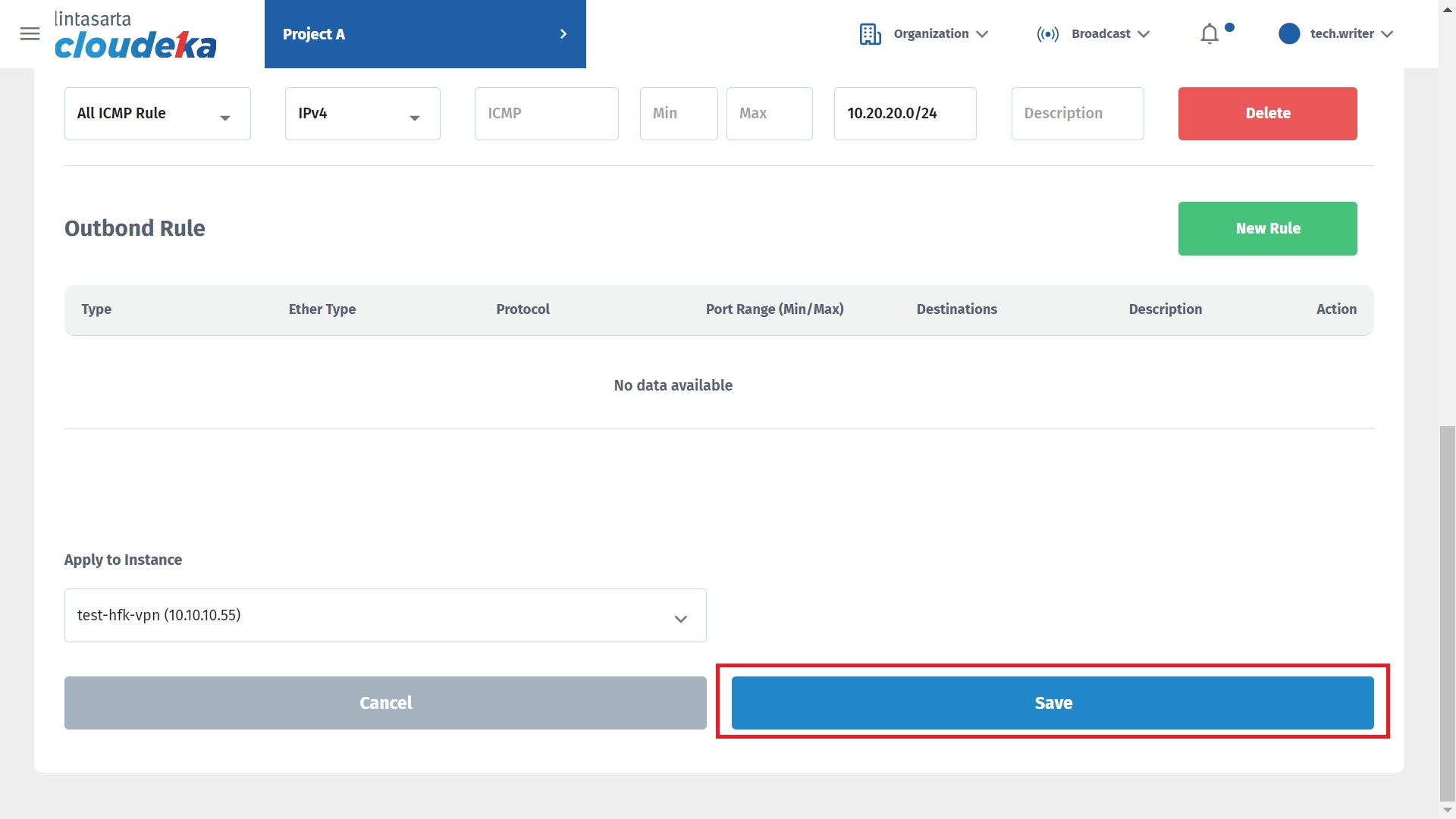

• Press the Save button to save changes.

Remote Instance using Putty (j)

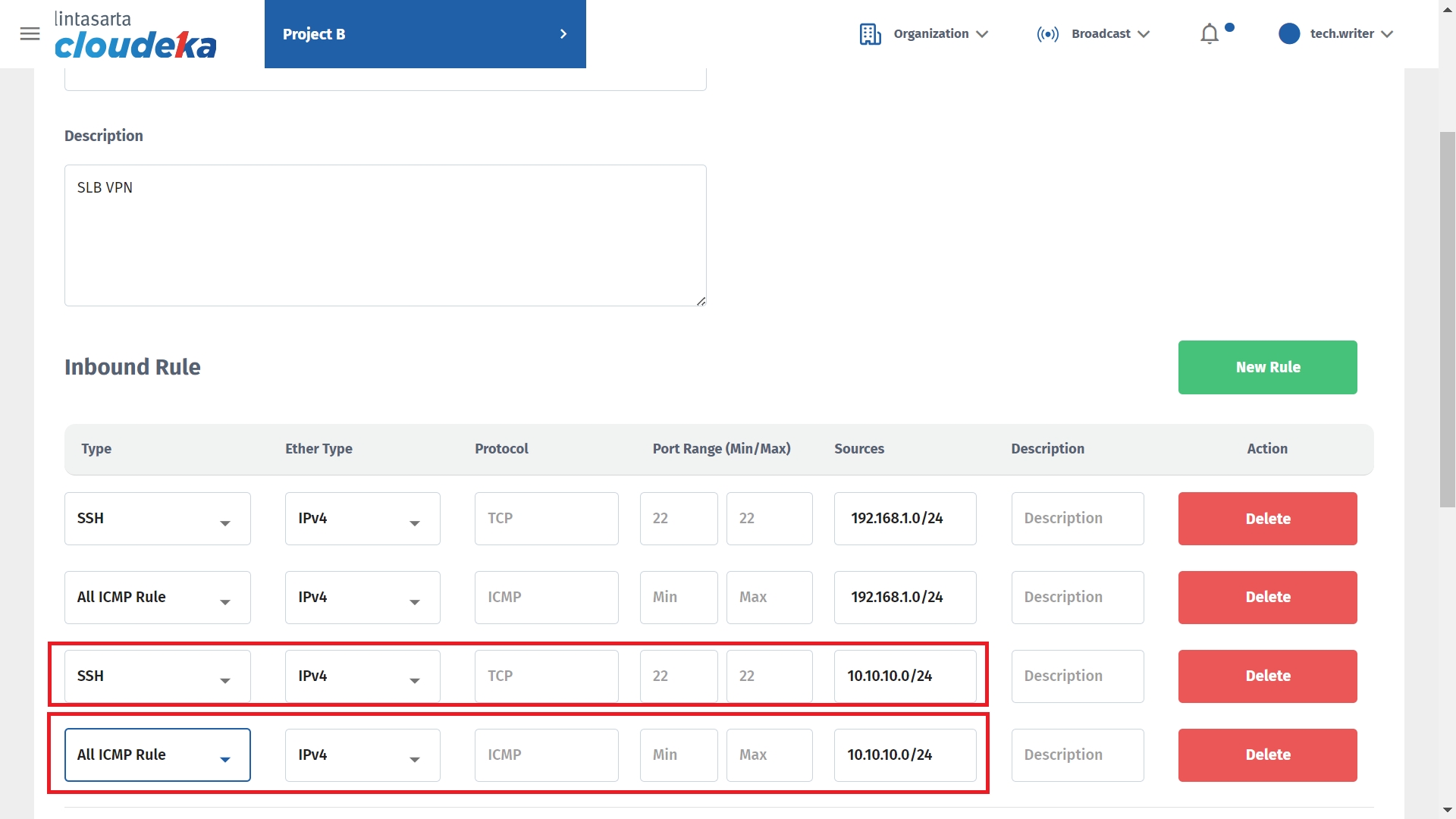

• Do the same steps to conImage Security on Project B by adding the subnet IP address on Project A, namely 10.10.10.0/24.

Remote Instance using Putty (k)

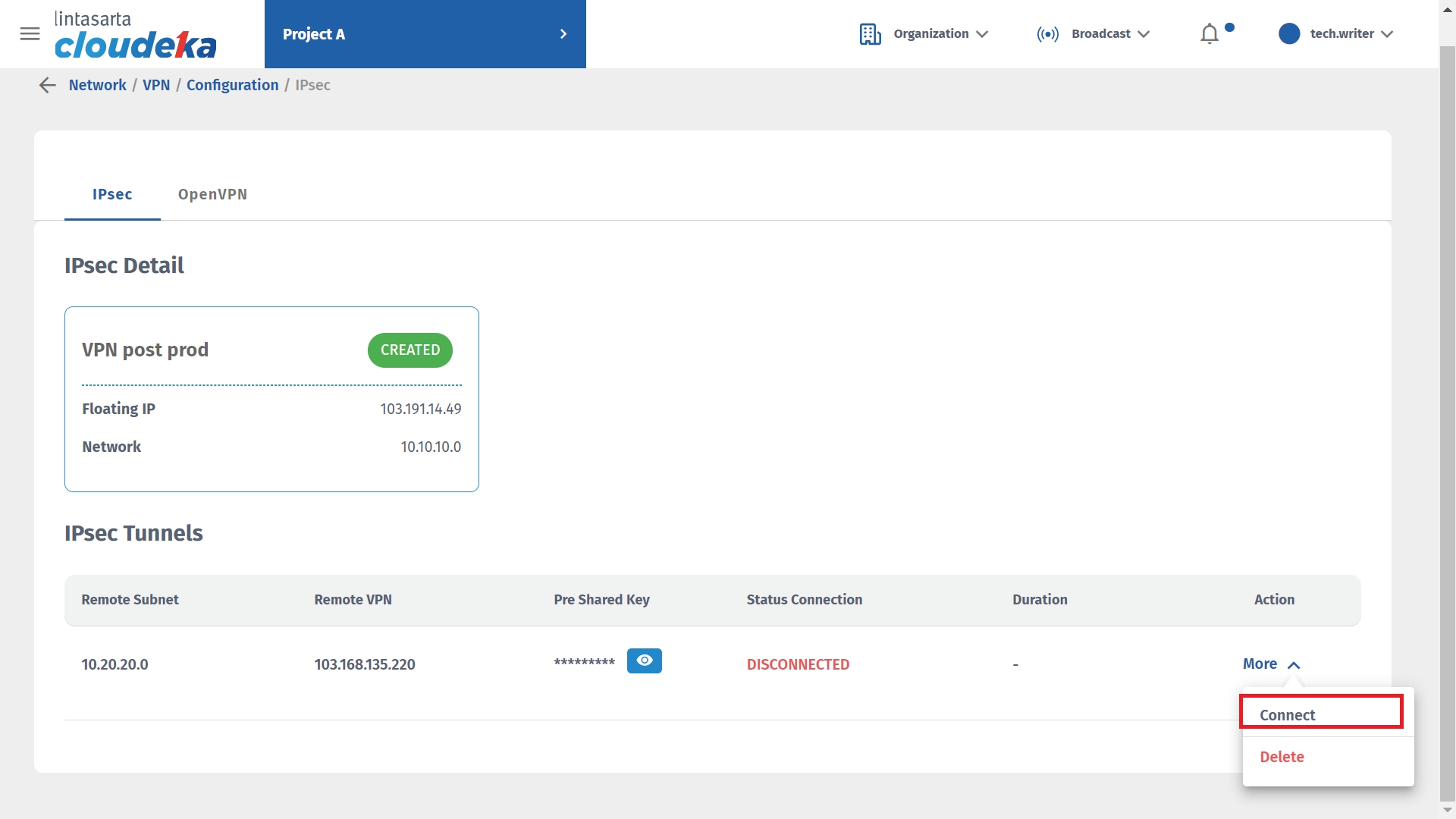

• Enable IPsec on Project A, make sure the IP address used is the Project B subnet.

Remote Instance using Putty (l)

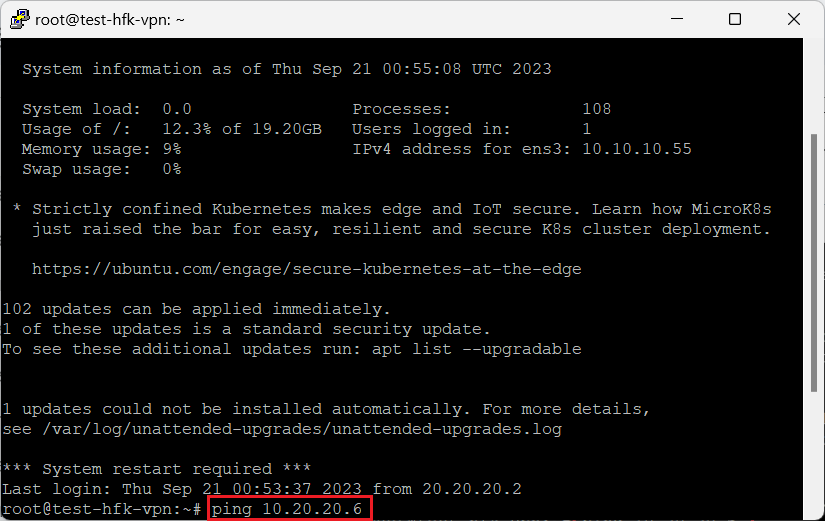

• Test the connection via Putty from the Project A virtual machine to the Project B virtual machine by inputting the following syntax: ping 10.20.20.6.

Remote Instance using Putty (m)

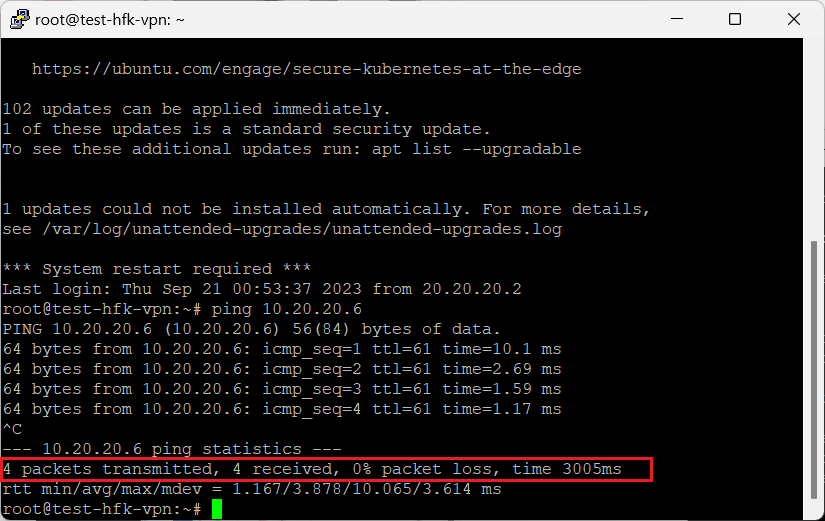

• The results of testing the network connection to the Project B virtual machine were completed in 3005 milliseconds (± 3 seconds).

Remote Instance using Putty (n)
